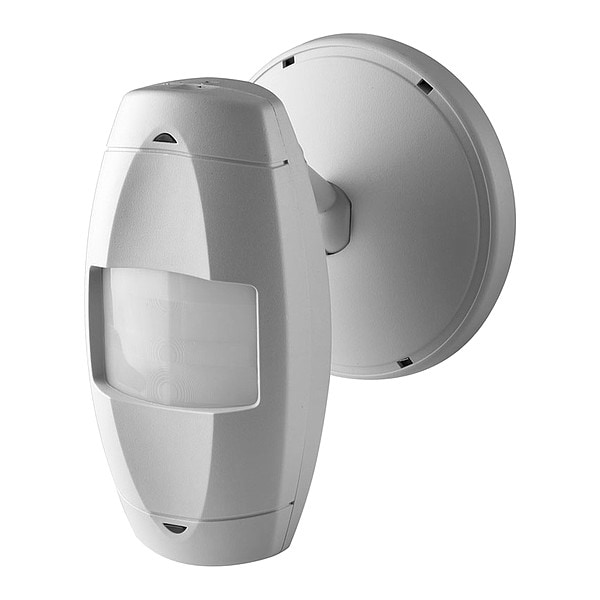

Occ Snsr, PIR, 24V DC, 1,400 sq ft
| Item | Occupancy Sensor |
|---|---|
| Color | White |
| Standards | cUL/NOM/ANCE Listed |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Coverage at Suggested Mounting Height | 1,400 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Description/Special Features | Adjustable Swivel Neck Rotates 80 Degrees Vertically and 60 Degrees Horizontally. can be Used for Ceiling or Wall Mounting, Ambient Light Override Prevents Lights From Turning on When There is Ample Natural Light, Combines PIR Technology With a Microprocessor Based Digital Architecture. by Eliminating False Triggering, the Sensor Provides a Trouble-Free "Install and Forget" Solution for Lighting Control, Fast, Simple Installation Using 3 Color-Coded Low-Voltage Wires and a Single Mounting Post, Non-Volatile Memory Preserves All Automatic and Manual Settings During Power Outages |
| Suggested Mounting Height - Motion Sensor | 8 ft to 10 ft |
| Color - Motion Sensing and Dimming | White |
| Installation Location - Motion Sensor | Wall |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Time Delay Adjustment Method - Motion Sensor | Automatic |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Includes | (2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts |
| Time Delay Adjustment Method | Automatic |
| Maximum Mounting Height | 10 ft |
| Minimum Time Delay | 30 sec |
| Load Rating @ 277V AC | Not Applicable |
| Minimum Operating Temperature | 32 Degrees F |
| Minimum Mounting Height | 8 ft |
| Communication Method | Hard Wired |
| Maximum Coverage Area | 1,400 sq ft |
| Overall Depth | 4.67 in |
| Maximum Time Delay | 30 min |
| Load Rating @ 480V AC | Not Applicable |
| Maximum Operating Temperature | 104 deg F |
| Coverage Angle | 360 deg |
| Lighting Technology | LED |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Sensor Operation | Occupancy, Photocell |
| Overall Height | 6.43 in |
| Installation Location | Wall |
| Manufacturer Warranty | 5 yr (Limited) |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
