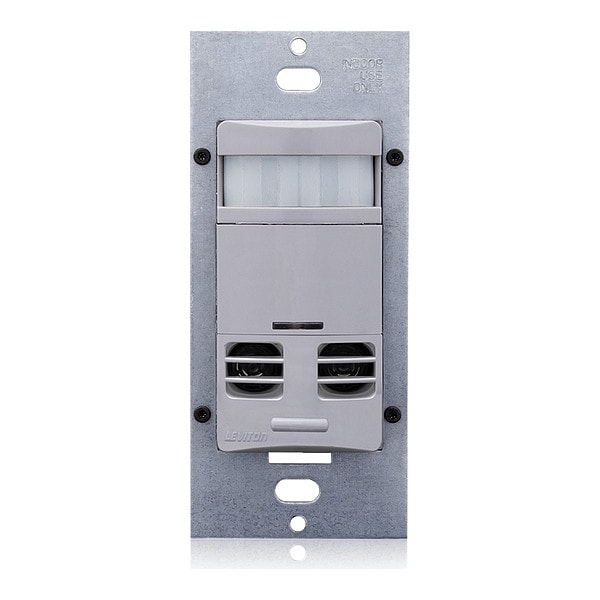

Sensor de ocupación, PIR/Ultrasonido, 120-277V CA, Gris.
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 2,400 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Color - Motion Sensing and Dimming | Gray |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Adjustable |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Color | Gray |
| Time Delay | 30s-30m |
| Max. Capacity @ 120VAC | 1200V (Fluorescent), 800W (Incandescent, Tungsten) |
| Includes | Neutral Wire |
| Lighting Technology | Fluorescent, Incandescent |
| Voltage | 120-277 VAC |
| Sensor Type | Occupancy |
| Coverage Angle - Motion Sensor | 180 deg |
| Item | Occupancy Sensor |
| Max. Capacity @ 277VAC | 2700VA (Fluorescent) |
| Standards | Title 24 Compliant, UL/cUL Listed, USMCA Compliant |
| Communication Method | Hard Wired |
| Overall Width | 1-3/4 in |
| Minimum Time Delay | 30 sec |
| Compatible with Series | Switching Only |
| Coverage Angle | 180 deg |
| Time Delay Adjustment Method | Adaptive |
| Maximum Operating Temperature | 104 deg F |
| Overall Depth | 1.85 in |
| Maximum Coverage Area | 2,400 sq ft |
| Load Rating @ 277V AC | 2,700VA (Fluorescent) |
| Load Rating @ 480V AC | Not Applicable |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Installation Location | Wall |
| Overall Height | 4.06 in |
| Coverage Type | Small Motion |
| Load Rating @ 120V AC | 1,200VA (Fluorescent), 800W (Incandescent, Tungsten) |
| Manufacturer Warranty | 5 yr |
| Minimum Operating Temperature | 32 deg F |
| Series | Decora |
| Maximum Time Delay | 30 min |
| Nightlight | No |
| Includes Dimming Switch | Dimming Switch Not Included |
| Maximum Detection Distance | 40 ft |
| Horsepower Rating | 1/4 hp |
| Neutral Required | Yes |
| Dimming Method | No Dimming |
| Includes Wall Plate | Wall Plate Not Included |
| Number of Buttons | 1 |
| Rated Frequency | 50/60 Hz |
| Includes Motion Sensor | Yes |
| Fan Rated | No |
| Dimming Type | No Dimming |
| Switch Type | Single-Pole |
| Pattern | 180° |
| Listings | UL/cUL |
| Operating Temperature | 0 to 40°C |
| Storage Temperature Range | 14° to 185°F |
| Application | Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way) |
| Relative Humidity | 20% to 90% non-condensing |
| Power Consumption | U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW |
| Product Type | Occupancy Sensor |
| Wiring | Line - Black, Load - Blue, Ground - Green, Neutral - White |
| Size | Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm) |
| Frequency | 50/60Hz |
| Sensor Technology | Multi-Technology: Passive Infrared /Ultrasonic |
| Load Rating | Incandescent/Tungsten: 800W @ 120V - Fluorescent: 1200VA @ 120V 2700VA @ 277V, 1500VA @ 347V - Motor: 1/4 HP @ 120V |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 |
| USMCA Compliant | Yes |
| Mounting Type | Wall Switch |
| Mounting | Wall Switch |
| Neutral Wire Connection | Required |
| Package Quantity | 1 |
