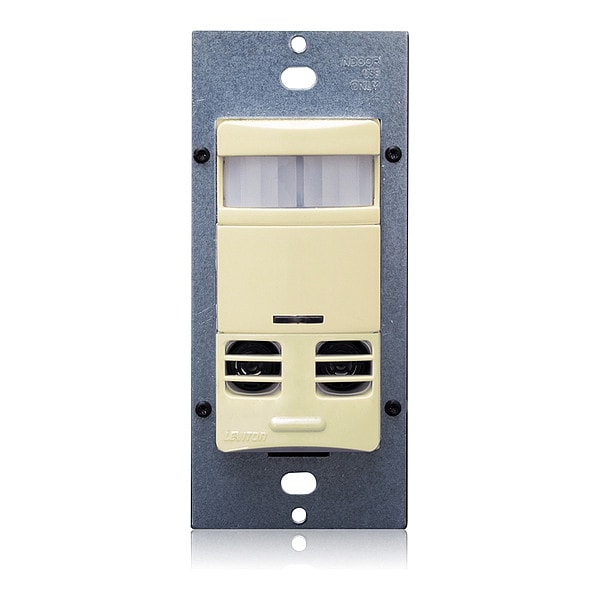

Occ Snsr, PIR/Usonic, 120-277V AC, Ivory
| Item | Occupancy Sensor |
|---|---|
| Color | Ivory |
| Standards | CSA Certified, ETL/cETL Listed, Title 24 Compliant, USMCA Compliant |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Coverage at Suggested Mounting Height | 2,400 sq ft |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Lighting Technology | Fluorescent, Incandescent |
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
| Max. Capacity @ 120VAC | 1200V (Fluorescent), 800W (Incandescent, Tungsten) |
| Max. Capacity @ 277VAC | 2700VA (Fluorescent) |
| Time Delay Adjustment Method - Motion Sensor | Adjustable, Adaptive |
| Installation Location - Motion Sensor | Wall Switch Box |
| Color - Motion Sensing and Dimming | White |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Coverage Angle | 180 deg |
| Load Rating @ 120V AC | 1,200VA (Fluorescent), 800W (Incandescent, Tungsten) |
| Communication Method | Hard Wired |
| Overall Width | 1-3/4 in |
| Fan Rated | No |
| Manufacturer Warranty | 5 yr |
| Nightlight | No |
| Time Delay Adjustment Method | Adaptive |
| Load Rating @ 277V AC | 2,700VA (Fluorescent) |
| Minimum Time Delay | 30 sec |
| Maximum Time Delay | 30 min |
| Series | Decora |
| Maximum Coverage Area | 2,400 sq ft |
| Minimum Operating Temperature | 32 Degrees F |
| Compatible with Series | Switching Only (universal) |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Overall Height | 4.06 in |
| Dimming Type | No Dimming |
| Dimming Method | No Dimming |
| Maximum Detection Distance | 40 ft |
| Maximum Operating Temperature | 104 deg F |
| Includes Wall Plate | Wall Plate Not Included |
| Includes Dimming Switch | Dimming Switch Not Included |
| Installation Location | Wall |
| Rated Frequency | 50/60 Hz |
| Number of Buttons | 1 |
| Neutral Required | No |
| Horsepower Rating | 0.25 HP |
| Includes Motion Sensor | Yes |
| Overall Depth | 1.85 in |
| Load Rating @ 480V AC | Not Applicable |
| Coverage Type | Small Motion |
| Operating Voltage | 120 to 277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
