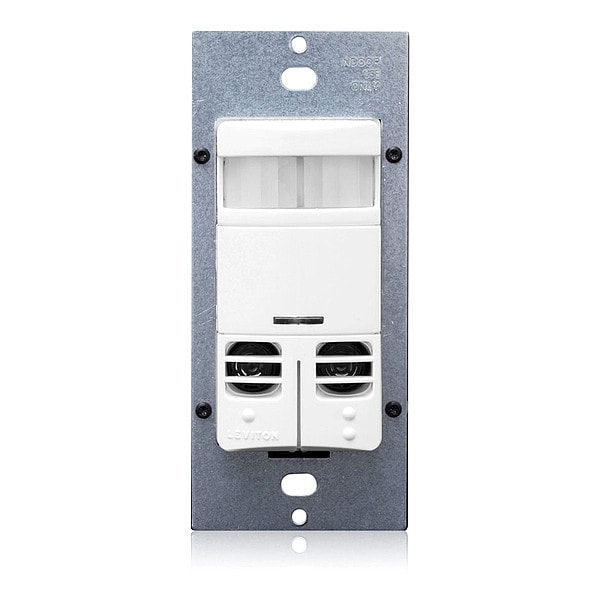

Sensor de ocupación, PIR/Ultrasonido, 120/230/277V AC, Blanco
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 2,400 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120/230/277 V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Adjustable |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Color | White |
| Standards | ASHRAE 90.1, CSA Certified, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6, USMCA Compliant |
| Item | Occupancy Sensor |
| Voltage | 120/230/277 VAC |
| Time Delay | 30s-30m |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Sensor Type | Occupancy |
| Coverage Angle - Motion Sensor | 180 deg |
| Communication Method | Hard Wired |
| Max. Capacity @ 277VAC | 10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent) |
| Max. Capacity @ 120VAC | 10A (LED), 1200V (Fluorescent), 800VA (Fluorescent), 800W (Incandescent) |
| Fan Rated | No |
| Number of Gangs | 1 |
| Compatible with Series | Switching Only |
| Minimum Time Delay | 30 sec |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Angle | 180 deg |
| Rated Frequency | 50/60 Hz |
| Dimming Method | No Dimming |
| Time Delay Adjustment Method | Adaptive |
| Maximum Coverage Area | 2,400 sq ft |
| Series | Decora |
| Number of Buttons | 2 |
| Maximum Detection Distance | 40 ft |
| Maximum Operating Temperature | 104 deg F |
| Installation Location | Wall |
| Includes Motion Sensor | Yes |
| Minimum Operating Temperature | 32 deg F |
| Dimming Type | No Dimming |
| Overall Width | 1-3/4 in |
| Load Rating @ 120V AC | 1,200VA (Fluorescent), 10A (LED), 800VA (Fluorescent), 800W (Incandescent) |
| Coverage Type | Small Motion |
| Nightlight | No |
| Neutral Required | No |
| Load Rating @ 480V AC | Not Applicable |
| Maximum Time Delay | 30 min |
| Manufacturer Warranty | 5 yr |
| Overall Depth | 1.83 in |
| Overall Height | 4.06 in |
| Load Rating @ 277V AC | 10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent) |
| Horsepower Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Not Included |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Mounting Type | Wall Switch |
| Relay Type | Dual Relay |
| Storage Temperature Range | 14° to 185°F |
| Grade | Commercial |
| USMCA Compliant | Yes |
| Application | Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching |
| Power Consumption | 120V 140mW, 277V 360mW |
| Mounting | Wall Switch |
| Load Rating | Primary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP |
| Pattern | 180° |
| Sensor Technology | Multi-Technology: Passive Infrared /Ultrasonic |
| Switch Type | Single-Pole, Dual Relay |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 20% to 90% non-condensing |
| Coverage (Sq.Ft.) | 2400 |
| Neutral Wire Connection | Not Required |
| Listings | ETL/cETL listed, CSA, FCC and NOM. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing requirements |
| Wiring | Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red |
| Size | Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm) |
| Product Type | Occupancy Sensor |
| Frequency | 50/60Hz |
| Package Quantity | 1 |
