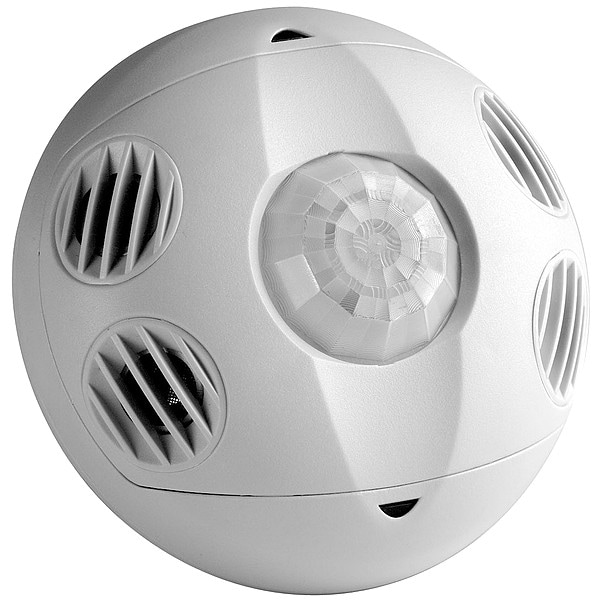

Occ Snsr, PIR/Usonic, 24V DC, 1,000 sq ft
| Item | Occupancy Sensor |
|---|---|
| Color | White |
| Standards | CEC Title 24 Compliant, cUL/NOM/ANCE Listed |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Coverage at Suggested Mounting Height | 1,000 sq ft |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Includes | (1) 360 Degrees Perforated Mask, (1) Half Mask, (1) Plastic Washer, (1) Threaded Rod and Hex Nut, (2) #8-32 Washer and Nut, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw |
| Suggested Mounting Height - Motion Sensor | 8 ft to 10 ft |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Description/Special Features | Accurate, Ambient Light Recognition, Consistent Switching, Maximum Reliability, Non-Volatile Memory, Self-Adapting |
| Color - Motion Sensing and Dimming | White |
| Coverage Angle - Motion Sensor | 360 Degrees |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Installation Location - Motion Sensor | Ceiling |
| Maximum Coverage Area | 1,000 sq ft |
| Maximum Operating Temperature | 104 deg F |
| Minimum Operating Temperature | 32 Degrees F |
| Minimum Time Delay | 30 sec |
| Manufacturer Warranty | 5 yr (Limited) |
| Sensor Operation | Occupancy, Photocell |
| Load Rating @ 480V AC | Not Applicable |
| Communication Method | Hard Wired |
| Maximum Mounting Height | 12 ft |
| Coverage Angle | 360 deg |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Overall Diameter | Not Applicable |
| Installation Location | Ceiling |
| Overall Depth | 1.57 in |
| Minimum Mounting Height | 8 ft |
| Load Rating @ 277V AC | Not Applicable |
| Overall Width | 4.2 in |
| Lighting Technology | LED |
| Maximum Time Delay | 30 min |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
