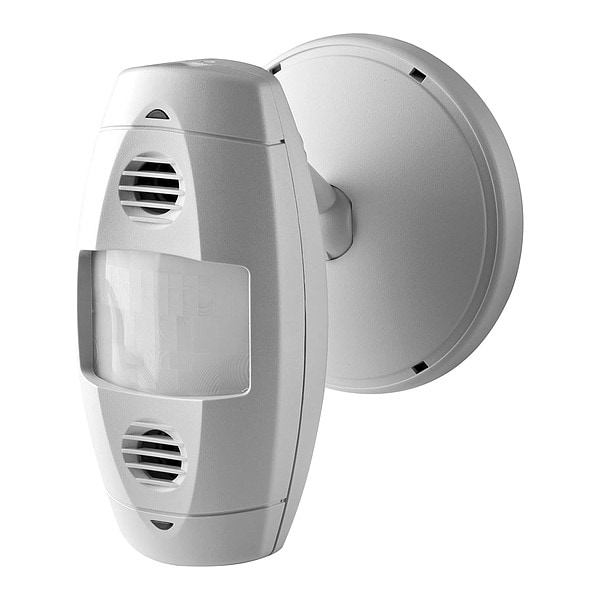

Occ Snsr, PIR/Usonic, 24V DC, 1,200 sq ft
| Item | Occupancy Sensor |
|---|---|
| Color | White |
| Standards | cUL/NOM/ANCE Listed |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Coverage at Suggested Mounting Height | 1,200 sq ft |
| Sensing Technology | Passive Infrared /Ultrasonic |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Includes | (2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts |
| Installation Location - Motion Sensor | Wall, Corner |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Time Delay Adjustment Method - Motion Sensor | Automatic |
| Suggested Mounting Height - Motion Sensor | 8 ft to 10 ft |
| Color - Motion Sensing and Dimming | White |
| Description/Special Features | Adjustable Swivel Neck Rotates 80 Degrees Vertically and 60 Degrees Horizontally. can be Used for Ceiling or Wall Mounting, Ambient Light Override Prevents Lights From Turning on When There is Ample Natural Light, Combines PIR Technology With a Microprocessor Based Digital Architecture. by Eliminating False Triggering, the Sensor Provides a Trouble-Free "Install and Forget" Solution for Lighting Control, Fast, Simple Installation Using 3 Color-Coded Low-Voltage Wires and a Single Mounting Post, Non-Volatile Memory Preserves All Automatic and Manual Settings During Power Outages |
| Time Delay Adjustment Method | Automatic |
| Manufacturer Warranty | 5 yr (Limited) |
| Series | OSPxx |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Load Rating @ 277V AC | Not Applicable |
| Maximum Operating Temperature | 104 deg F |
| Communication Method | Hard Wired |
| Lighting Technology | LED |
| Coverage Angle | 360 deg |
| Maximum Time Delay | 30 min |
| Load Rating @ 480V AC | Not Applicable |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Coverage Area | 1,200 sq ft |
| Minimum Mounting Height | 8 ft |
| Installation Location | Wall |
| Sensor Operation | Occupancy, Photocell |
| Minimum Time Delay | 30 sec |
| Maximum Mounting Height | 10 ft |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
