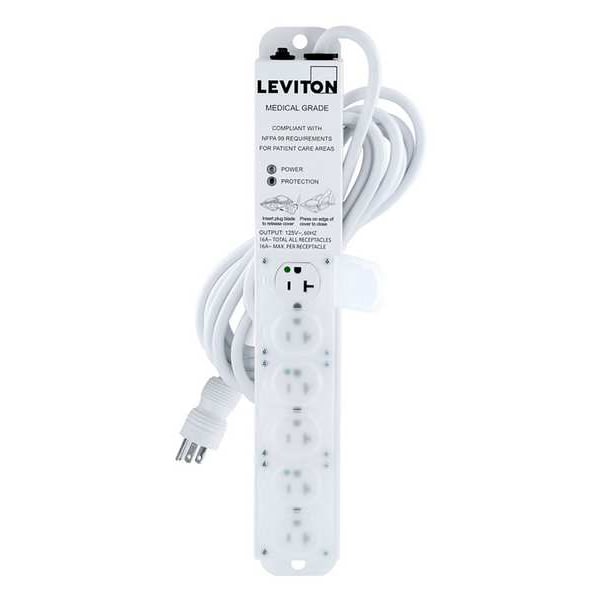

Outlet Strip, 20 A, 15 ft Cord L, 6 Outlets
| Item | Surge Protected Outlet Strip |
|---|---|
| Receptacle Configuration | Hospital Grade |
| Plug Configuration | NEMA 5-20P |
| Cord Length | 15 ft |
| Standards | ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1 |
| Length | 16-7/8 in |
| Voltage | 125V AC |
| Total Number of Outlets | 6 |
| Max. Surge Current | 27 kA |
| Hz | 60 Hz Hz |
| Mounting Style | Mounting Hole |
| Housing Material | Steel |
| Max. Amps | 20 |
| Rated Joules | 644 |
| Noise Attenuation | -6 to -29dB |
| Medical Facility Use | Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1) |
| Surge Protection Indicator | Yes |
| For Use With | Isolated Power Systems |
| Height | 1-5/8 in |
| Power Indicator | Yes |
| Application | Hospital and Medical Facility |
| Trade Designation | SJT |
| Special Features | Easily Accommodates Surface Mounting and IV Pole Mounting With the Use of the Mounting Bracket, Heavy Duty Steel Construction Withstands the Rigors of Demanding Environments, Locking Safety Covers are Splash-Resistant and Protect From Incidental Contact With Unused Outlets |
| Width | 2-5/8 in |
| Frequency | 60Hz |
| Amperage | 20 A |
| Noise Filtering | -6 to -29 dB |
| Number of Receptacles | 6 |
| UL 1363A & CSA C22.2 | No. 21 |
| Joules Rating | 644J |
| Enclosure | Powder Coated Steel |
| Surge Protection | Yes |
| Line Cord | #14/3 SJT |
| UL 60950-1 & CSA C22.2 | No. 60950-1 |
| HG Plug Configuration | NEMA 5-20P |
| Maximum Surge Current, Per Mode (L-N) | 27kA |
| Grade | Medical |
| Maximum Leakage Current | <100µA |
| Storage Temperature | -10°C to +50°C |
| Outlet Covers | Polypropylene |
| Operating Temperature | 0°C to 40°C |
| Voltage Protection Rating (VPR) L-N, L-G, N-G | 600 V, 600 V, 500 V |
| HG Outlet Configuration | NEMA 5-20R |
| Surge Technology | MOV |
| Package Quantity | 1 |
