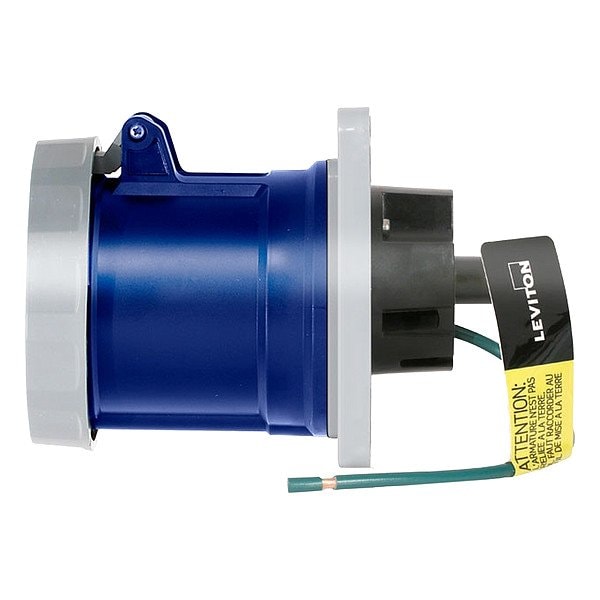

Este receptáculo de clavija y enchufe de Leviton es ideal para aplicaciones de 100 A y 250V CA en sistemas trifásicos. Con 3 polos y cumpliendo con estándares NEMA 12, 3R, 4X, 6P, es una opción confiable y segura para entornos industriales y comerciales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66, IP68 |
| NEMA Enclosure Rating | 4X, 3R, 12, 6P |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | CSA, IEC 60309-1 and 60309-2, NOM-ANCE, NSF, UL 1682 and 1686 |
| Resistance Properties | Watertight |
| Minimum Wire Size | 6 AWG |
| Housing Material | Nylon |
| For Environment | Industrial |
| For Location | Outdoor |
| Horsepower Rating | 10 HP |
| UL 94 Flammability Rating | V-0, HB |
| For Maximum Cable Diameter | 1.6 in |
| Grounding | Grounded |
| Market | Industrial |
| Includes Mounting Hardware | No |
| For Minimum Cable Diameter | 0.725 in |
| Package Quantity | 1 |
