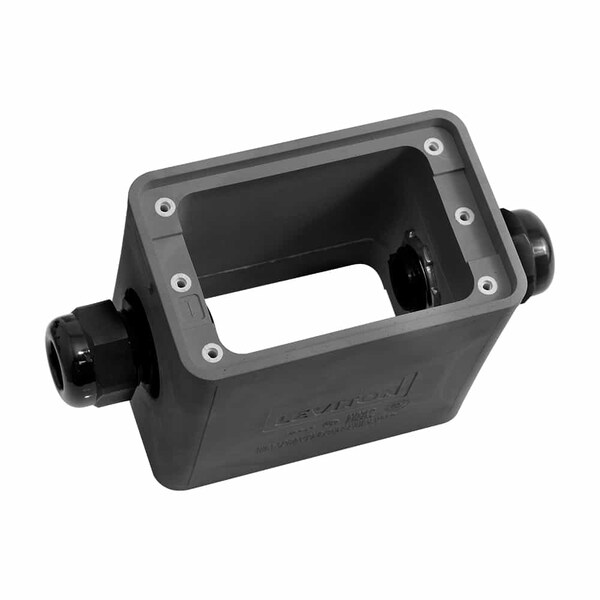

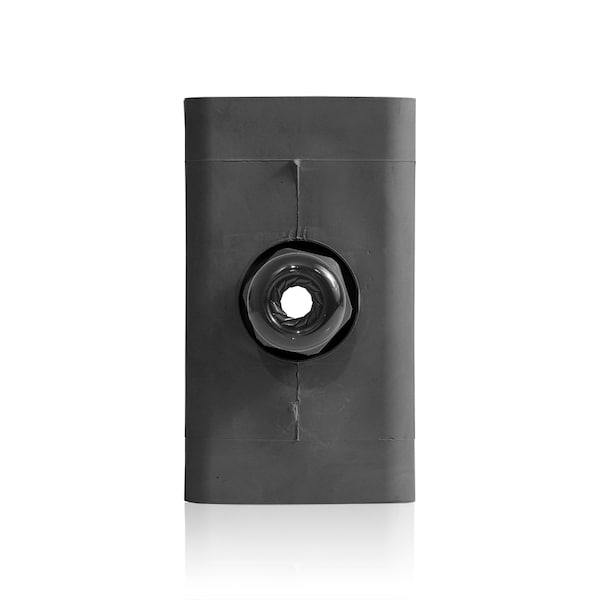

Power Distribution Units Pdus 1G Rbr Bx Sg Ex Ft 0.230 - 0.546
| Type | Extra Deep |
|---|---|
| Capacity | 22.3 |
| Height | 4.34 in |
| Color | Black |
| Length | 5.56 in |
| Width | 3.41 in |
| Material | Santoprene TPV |
| Application | Commercial Applications |
| UL Listed | 514C |
| Device Type | Box |
| Screw Inserts | Nylon |
| Locking Nut | Steel |
| Operating Temperature | -20°C to 100°C |
| Strain Relief | Nylon |
| Gang | 1 |
| Flammability | Rated V-2 (Strain Relief), V-0 (Box) per UL 94 |
| Style | Feed-Through |
| Temperature Rating | -20 to 100 |
| Cable Size | 0.230 - 0.546 in |
| Environmental Conditions | Flammability V-2 (Strain Relief);Flammability V-0 (Box) |
| Standard | UL Listed 514C;RoHS Compliant |
| Mounting | Feed Through |
| Dimensions | 3.9 in x 2-1/2 in x 3-3/8 in |
| Package Quantity | 1 |
