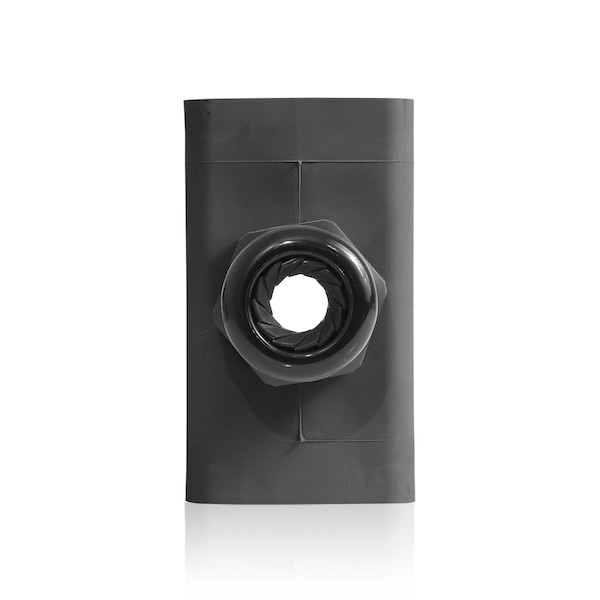

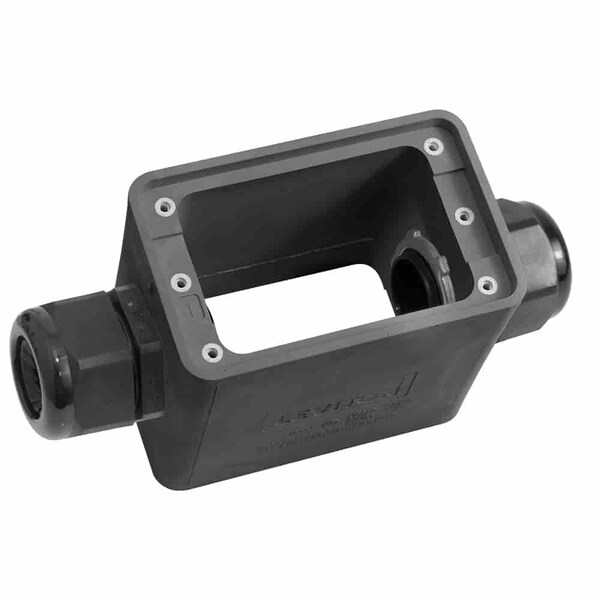

Power Distribution Units Pdus 1G Rbr Bx Sg Ex Ft 0.590 - 1.000
| Type | Portable Outlet Box |
|---|---|
| Color | Black |
| Width | 2-3/4 in |
| Height | 4.88 in |
| Length | 6.84 in |
| Application | Commercial Applications |
| Device Type | Box |
| Operating Temperature | -20°C to 100°C |
| Locking Nut | Steel |
| Strain Relief | Nylon |
| Screw Inserts | Nylon |
| Flammability | Rated V-2 (Strain Relief), V-0 (Box) per UL 94 |
| UL Listed | 514C |
| Gang | 1 |
| Style | Feed-Through |
| Torque Range | 1/2" NPT & 1" NPT 45-55 in-LBS |
| Standard | UL Listed 514C;RoHS Compliant |
| Environmental Conditions | Flammability V-2 (Strain Relief);Flammability V-0 (Box) |
| Cable Size | 0.59 to 1 in |
| Package Quantity | 1 |
