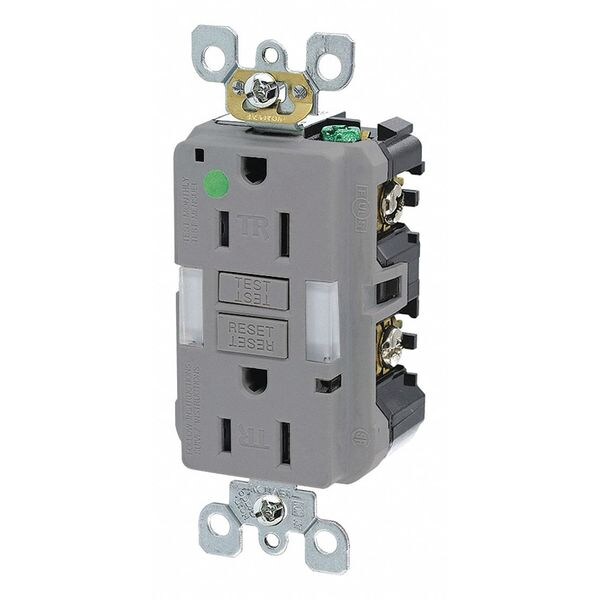

El receptáculo Leviton en color gris ofrece protección contra descargas eléctricas y está diseñado para corriente de 15 amperios, con conexión a tierra y un paquete de 1 unidad.
| Item | GFI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Phase | Single |
| GFCI | Yes |
| Grounding | Grounded |
| Housing Color | Gray |
| Number of Outlets | 2 |
| Housing Material | Thermoplastic |
| NEMA Enclosure Rating | Not Rated |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps - Plugs and Receptacles | 15 A |
| Wiring Method | Back, Side |
| NEMA Configuration | 5-15 |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Power Indicator | Yes |
| HP | 1 hp |
| Outlet Type - Plugs and Receptacles | Duplex |
| Surge Suppression | Yes |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Gray |
| Special Features | Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination |
| Voltage - Plugs and Receptacles | 125 V |
| Application Environment | Hospital Grade |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Self-Testing | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Surge Protection | Yes |
| Resistance Properties | Tamper Resistant |
| Receptacle Type | Decorator Duplex |
| Wire Connection Types | Screw Terminals |
| Key Resistance Properties | Tamper Resistant |
| Visual Indicator Lights | Power Connected |
| Includes | Strap Material |
| Additional Electrical Protections | GFCI & Surge Protection |
| Maximum Operating Temperature | 150.8 deg F |
| Face Plate Width | 1.7 in |
| Self Testing | Yes |
| Contact Material | Brass |
| Mount Hole Center-to-Center Height | 3.8 in |
| UL 94 Flammability Rating | V-0 |
| Minimum Wire Size | 14 AWG |
| Voltage Rating | 125 V AC |
| Maximum Wire Size | 10 AWG |
| Overall Depth | 1.4 in |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Mount Type | Flush |
| Additional Electrical Protection | GFCI, Surge Protection |
| Grade | Hospital Grade Fed. Spec. |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Hub Type | Feed Through |
| Horsepower Rating | 1 HP |
| Face Plate Height | 2.7 in |
| Hazardous Location Specification | Not Applicable |
| Minimum Operating Temperature | -31 deg F |
| Package Quantity | 1 |
