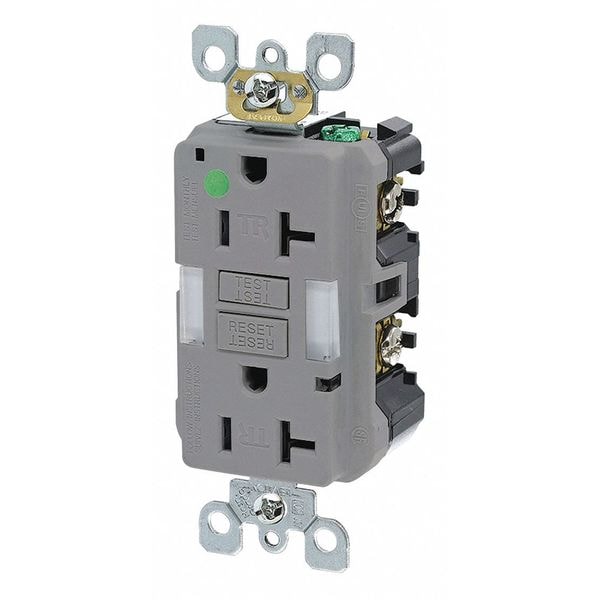

Recept, Gray, 20 A, GFCI, 2P3W, Bk;Sd, 1PK
| Item | GFI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20 A |
| GFCI | Yes |
| Phase | Single |
| Grounding | Grounded |
| Number of Outlets | 2 |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| NEMA Enclosure Rating | Not Rated |
| NEMA Receptacle Configuration | 5-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Tamper Resistant | Yes |
| Surge Suppression | Yes |
| Power Indicator | Yes |
| Amps - Plugs and Receptacles | 20 A |
| Self-Testing | Yes |
| Voltage - Plugs and Receptacles | 125 V |
| Outlet Type - Plugs and Receptacles | Duplex |
| HP | 1 hp |
| Color | Gray |
| Wiring Method | Back, Side |
| Color - Plugs and Receptacles | Gray |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Voltage | 125 VAC |
| Weather Resistant - Plugs and Receptacles | No |
| Application Environment | Hospital Grade |
| Special Features | Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Visual Indicator Lights | Power Connected |
| Resistance Properties | Tamper Resistant |
| Voltage Rating | 125 V AC |
| Horsepower Rating | 1 HP |
| Hazardous Location Specification | Not Applicable |
| Face Plate Width | 1.8 in |
| Face Plate Height | 2.7 in |
| Receptacle Type | Decorator Duplex |
| Maximum Operating Temperature | 150.8 deg F |
| Surge Protection | Yes |
| Includes | Strap Material |
| Self Testing | Yes |
| Grade | Hospital Grade Fed. Spec. |
| Overall Depth | 1.4 in |
| Minimum Wire Size | 14 AWG |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Minimum Operating Temperature | -31 deg F |
| Contact Material | Brass |
| Maximum Wire Size | 10 AWG |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-Center Height | 1.3 in |
| UL 94 Flammability Rating | V-0 |
| Terminal Screws | Plated Steel |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Flammability | Rated V-0 per UL 94 |
| Wire | 3 |
| Ground Clips | Brass |
| Certification/Listing | UL, CSA, NOM-ANCE |
| Termination | Back, Side Wire |
| Terminal Accom. | 14-10 AWG solid or stranded |
| Strap Material | Galvanized Steel |
| Terminal Clamp | Brass |
| Pole | 2 |
| At Rated Voltage | 1 HP |
| Device Type | Duplex Receptacle Outlet |
| Shutter Mechanism | Delrin® Acetal |
| Body Material | Polycarbonate |
| NEMA | WD-6, WD-1 |
| Line Contacts | Brass |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Screw Terminal Torque | 14-18 in-lbs |
| ANSI | C-73 |
| Amperage | 20 A |
| Short Circuit Current Rating | 10KA |
| Face Material | PBT |
| Grounding Screw | Plated Steel |
| Feature | Tamper-Resistant|Power Indication |
| Function | GFCI |
| Operating Temperature | -35C to +66C |
| Package Quantity | 1 |
