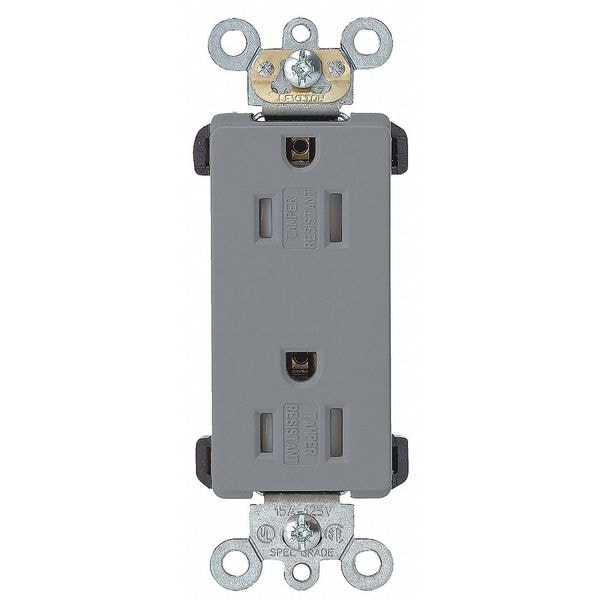

Receptacle, 15 A Amps, 125VAC, Decorator Duplex Outlet, 5-15R, Gray
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Outlet |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Heavy-Duty Industrial Grade |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Description | Smooth Face |
| Color | Gray |
| Voltage | 125 VAC |
| HP | 1/2 hp |
| Wiring Method | Back, Side |
| Sub-Category | Duplex Receptacles |
| Material | PBT Polyester Blend (Body and Face) |
| Phase | Single |
| Standards | ANSI, CSA Certified, cULus Listed, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed |
| Grounding | Grounded |
| Number of Outlets | 2 |
| Connection Orientation | Straight |
| Maximum Wire Size | 10 AWG |
| GFCI | No |
| Minimum Operating Temperature | -40 deg F |
| Hazardous Location Specification | Not Applicable |
| Resistance Properties | Tamper Resistant |
| Mount Type | Flush |
| Housing Material | Polyester |
| Cover Type | No Cover |
| Maximum Operating Temperature | 167 deg F |
| Receptacle Type | Decorator Duplex |
| Contact Material | Brass |
| Housing Color | Gray |
| NEMA Receptacle Configuration | 5-15R |
| Face Plate Height | 2.8 in |
| Current Rating | 15 A |
| NEMA Enclosure Rating | Not Rated |
| Overall Depth | 0.9 in |
| UL 94 Flammability Rating | V-0 |
| Face Plate Width | 1.3 in |
| Market | Industrial |
| Mount Hole Center-to-Center Height | 3.3 in |
| Includes Mounting Hardware | Yes |
| Includes | Cover, Wallplate |
| Grade | Federal Specification |
| Polarized | Yes |
| Horsepower Rating | 0.5 HP |
| Voltage Rating | 125V AC |
| Minimum Wire Size | 14 AWG |
| Wire Connection Type | Screw Terminals |
| Certification/Listing | cULus, NOM-ANCE |
| Terminal ID | Brass - Hot, Silver - Neutral, Green - Ground, |
| Wire Type | Stranded or Solid |
| Pole | 2 |
| Grounding Screw | Brass, #8 Hex Head |
| Terminal Screws | Brass |
| Shutter Mechanism | Acetal |
| Strap Material | Steel |
| ANSI | C-73 |
| Ground Contacts | 0.030" Brass |
| Amperage | 15 A |
| Flammability | Rated V-0 per UL 94 |
| Ground Clips | Brass |
| Body Material | PBT Polyester Blend |
| Color / Feature | Gray |
| Terminal Clamps | Brass |
| Screw Terminal Torque | 14 to 18 in-lb |
| Mounting Screws | Triple-Drive Plated Steel |
| Dielectric Voltage | Withstands 3000 V minimum |
| Applicable Standards | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
| Feature 4 | Smooth Face |
| Wire | 3 |
| Terminal Accom. | #14 AWG - #10 AWG |
| Temperature Rise | Max 30 °C temperature rise at full rated current |
| Feature 2 | Tamper-Resistant |
| Line Contacts | Phosphor Bronze Triple Wipe 0.031 |
| Face Material | PBT Polyester Blend |
| Operating Temperature | -40°C to 75°C |
| Device Type | Duplex Receptacle Outlet |
| Termination | Back, Side Wire |
| Package Quantity | 1 |
