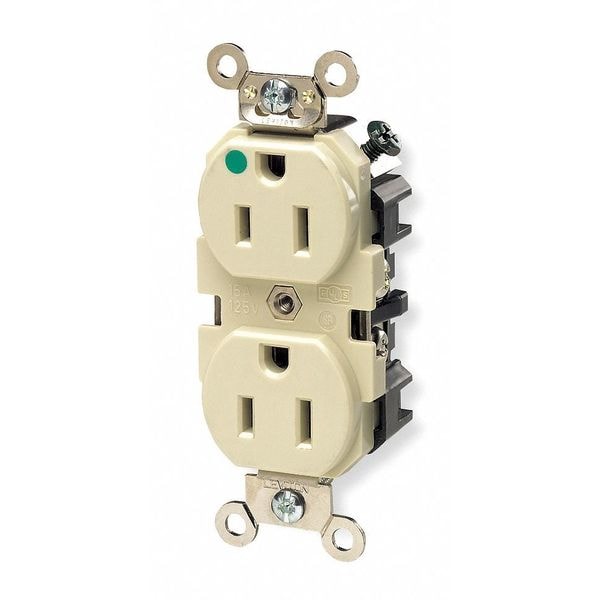

Receptacle, 15 A Amps, 125VAC, Duplex Outlet, 5-15R, Brown
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Extra Heavy-Duty Hospital Grade |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Item - Plugs and Receptacles | Outlet |
| Color | Brown |
| Voltage | 125 VAC |
| Phase | Single |
| Wiring Method | Back, Side |
| Material | Nylon (Body and Face) |
| Sub-Category | Duplex Receptacles |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399 |
| Description | Smooth Face |
| HP | 1/2 hp |
| Wire Connection Type | Screw Terminals |
| NEMA Receptacle Configuration | 5-15R |
| Receptacle Type | Duplex |
| Polarized | Yes |
| Horsepower Rating | 0.5 HP |
| Overall Depth | 0.9 in |
| Resistance Properties | Not Applicable |
| Voltage Rating | 125V AC |
| UL 94 Flammability Rating | V-2 |
| Grade | Hospital Grade Fed. Spec. |
| Maximum Operating Temperature | 140 deg F |
| NEMA Enclosure Rating | Not Rated |
| Grounding | Grounded |
| Includes Mounting Hardware | Yes |
| Cover Type | No Cover |
| Housing Color | Brown |
| Hazardous Location Specification | Not Applicable |
| Face Plate Width | 1-1/2 in |
| Mount Type | Flush |
| Housing Material | Nylon |
| Maximum Wire Size | 10 AWG |
| Contact Material | Nickel Plated Brass |
| Number of Outlets | 2 |
| Current Rating | 15 A |
| Minimum Operating Temperature | -40 deg F |
| Minimum Wire Size | 14 AWG |
| GFCI | No |
| Connection Orientation | Straight |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Grounding Screw | Brass |
| Termination | Back, Side Wire |
| Ground Clips | Nickel-Plated Brass |
| UL Fed Spec WC-596 | File E13399 |
| Clamp Nuts | Zinc Plated Steel |
| CSA C22.2 No. 42 | File 152105 |
| NEMA | WD-6 |
| Device Type | Duplex Receptacle Outlet |
| Yoke | Brass |
| Torque Range | 14-16 inch pounds |
| Operating Temperature | -40°C to 60°C |
| Strap Material | Nickel Plated Brass |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .040 Thick |
| Current Limiting | Full Rated Current |
| UL498HG | File E13399 |
| Screw Terminal Torque | 14 to 18 in-lb |
| Face Material | Nylon |
| Feature 4 | Smooth Face |
| ANSI | C-73 |
| Wire | 3 |
| Pole | 2 |
| Terminal Screws | Brass |
| Body Material | Nylon |
| Flammability | Rated V-2 per UL 94 |
| Amperage | 15 A |
| Terminal Accom. | 14-10 AWG |
| Package Quantity | 1 |
