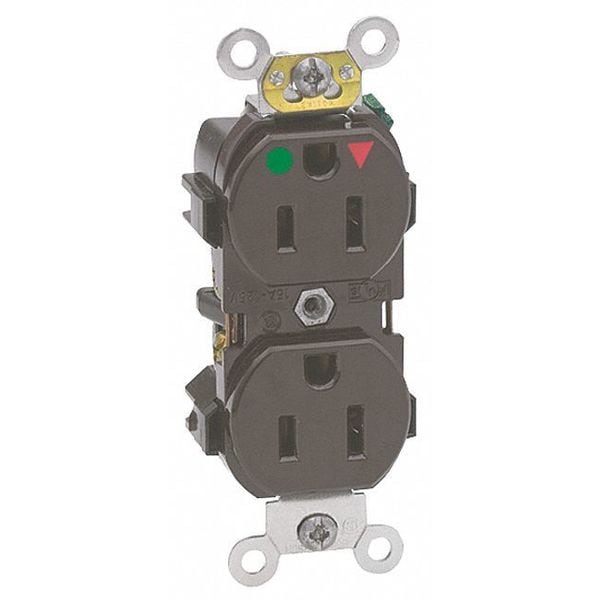

Receptacle, 15 A Amps, 125VAC, Duplex Outlet, 5-15R, Brown
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Hospital Grade |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| HP | 1/2 hp |
| Material | PBT Polyester Blend (Body and Face) |
| Voltage | 125 VAC |
| Wiring Method | Back, Side |
| Standards | ANSI C73, cULus NOM-ANCE, NEMA WD-6, RoHS Compliant, UL 498 Federal Specification W-C-569 CSA C22.2 No. 42 CSA C22.2 No. 42 File E152105, UL 498HG File E13399, UL Federal Specification WC-596 File E13399 |
| Phase | Single |
| Description | Smooth Face |
| Sub-Category | Duplex Receptacles |
| Color | Brown |
| NEMA Configuration | 5-15 |
| Current Rating | 15 A |
| Minimum Wire Size | 14 AWG |
| NEMA Receptacle Configuration | 5-15R |
| Face Plate Width | 1.3 in |
| Cover Type | No Cover |
| Resistance Properties | Not Applicable |
| Maximum Operating Temperature | 140 deg F |
| Receptacle Type | Duplex |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| NEMA Enclosure Rating | Not Rated |
| Voltage Rating | 125V AC |
| Grade | Hospital Grade Fed. Spec. |
| Horsepower Rating | 0.5 HP |
| Number of Outlets | 2 |
| Isolated Grounding | Yes |
| Additional Electrical Protections | Isolated Ground |
| Key Resistance Properties | Standard Resistance |
| Wire Connection Type | Screw Terminals |
| Overall Depth | 1.1 in |
| Mount Type | Flush |
| Connection Orientation | Straight |
| Housing Color | Brown |
| Hazardous Location Specification | Not Applicable |
| Grounding | Isolated Grounding |
| Additional Electrical Protection | Isolated Ground |
| Housing Material | Polyester |
| Minimum Operating Temperature | -40 deg F |
| Polarized | Yes |
| Wire Connection Types | Screw Terminals |
| Face Plate Height | 2.8 in |
| Includes Mounting Hardware | Yes |
| GFCI | No |
| Maximum Wire Size | 10 AWG |
| UL 94 Flammability Rating | V-2 |
| Contact Material | Phosphor Bronze |
| Function | Ground |
| Ground Clips | Brass |
| Dielectric Voltage | Withstands 3000V min |
| NEMA | WD-6 |
| Amperage | 15 A |
| Temperature Rise | Max 30C temperature rise at full rated current |
| Ground Contacts | 0030" Brass |
| UL498HG | File E13399 |
| Screw Terminal Torque | 14 to 18 in-lb |
| ANSI | C-73 |
| Line Contacts | 0.030" Phosopher Bronze |
| Grounding Screw | #8 Hex Head, Triple-Drive Bass |
| Body Material | PBT Polyester Blend |
| Clamp Nuts | Brass |
| Pole | 2 |
| Flammability | Rated V-2 per UL 94 |
| Feature 4 | Smooth Face |
| Mounting Screws | Triple-Drive Plated Steel |
| Wire Type | Stranded or Solid |
| Termination | Back, Side Wire |
| Wire | 3 |
| Device Type | Duplex Receptacle Outlet |
| Current Limiting | Full Rated Current |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Face Material | PBT Polyester Blend |
| Certification/Listing | cULus, NOM-ANCE |
| Strap Material | Steel |
| Terminal Screws | Brass |
| Terminal Clamp | Brass |
| Terminal Accom. | 14-10 AWG |
| Operating Temperature | -40°C to 60°C |
| Applicable Standards | UL 498, Fed Spec W-C-569, CSA 22.2 No. 42 |
| CSA C22.2 No. 42 | File 152105 |
| Shutter Mechanism | Acetal |
| At Rated Voltage | 0.5 HP |
| Package Quantity | 1 |
