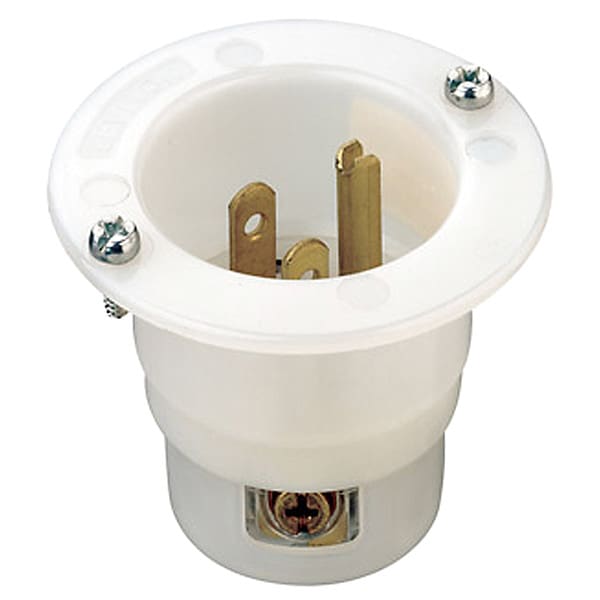

Receptacle, 15 A Amps, 125VAC, Inlet Outlet, 5-15P, White
| Item - Plugs and Receptacles | Straight Blade Flanged Inlet |
|---|---|
| Item | Flanged Inlet |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| NEMA Rating | WD-6 |
| Sub-Category | Flanged Receptacles |
| Application Environment | Industrial |
| Weather Resistant - Plugs and Receptacles | Yes |
| Outlet Type - Plugs and Receptacles | Inlet |
| Color - Plugs and Receptacles | White |
| Corrosion Resistant | Yes |
| Special Features | Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current |
| Grade | General Use |
| Wiring Method | Back |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393 |
| Wiring Method - Plugs and Receptacles | Back |
| Material | Nylon (Face), Super Tough Nylon (Body) |
| Phase | Single |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15P |
| Blade Material | Brass |
| Polarized | Yes |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Size | 18 AWG |
| Shrouded | Yes |
| Maximum Operating Temperature | 60 deg C |
| Market | Industrial |
| Face Diameter | 1.69 in |
| Horsepower Rating | 0.5 HP |
| Voltage Rating | 125V AC |
| Current Rating | 15 A |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| For Environment | Dry |
| Connection Orientation | Straight |
| Includes | Mounting Hardware |
| Maximum Wire Size | 10 AWG |
| Housing Material | Nylon, Super Tough Nylon |
| Flange Type | Flanged |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Weather Resistant |
| Mount Hole Center-to-Center Width | 2.11 in |
| Features | Glass-Filled Thermoplastic Cover and Plate Provides Outstanding Impact Resistance and Durability, Stainless Steel External Hardware Resists Corrosive Effects of Moisture as Dual Gaskets, One Under Plate and One Under Lid, Provide for a Superior Weather-Resistant Fit |
| Minimum Operating Temperature | -40 deg C |
| Cover Type | No Cover |
| For Location | Indoor, Outdoor |
| Grounding | Grounded |
| Flange Diameter | 2.5 in |
| Housing Color | White |
| Flange Shape | Rectangular |
| NEMA Enclosure Rating | Not Rated |
| Number of Blades | 3 |
| NEMA Plug Configuration | 5-15P |
| Body Material | Super Tough Nylon |
| Assembly Screws | Steel, Zinc Plated |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Flammability | Rated V-2 per UL 94 |
| Terminal Screws | Brass |
| Environment | Dry |
| Operating Temp. | -40°C to 60°C |
| Termination | Back |
| Wire Gauge | 18-10 AWG |
| Face Material | Nylon |
| Strap Material | Thermoplastic Nylon |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Dielectric Strength | Withstands 2000V per UL498 |
| Torque Range | 10 to 14 in-lb |
| Package Quantity | 1 |
