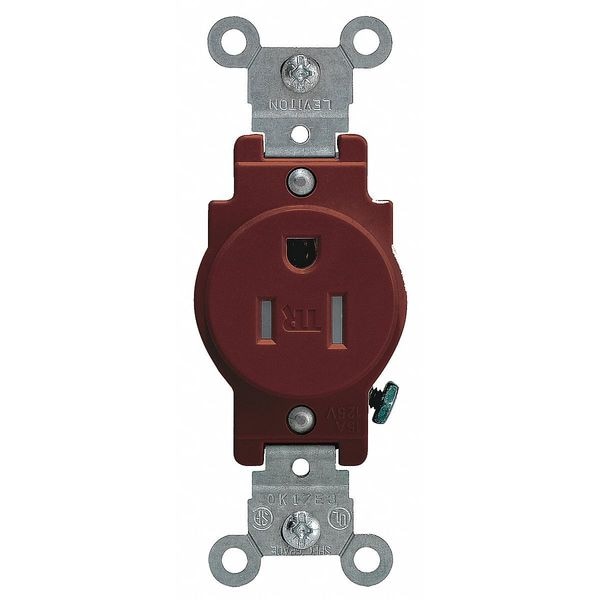

Receptacle, 15 A Amps, 125VAC, Single Outlet, 5-15R, Brown
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Outlet |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Commercial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Method | Back, Side |
| Color | Brown |
| Standards | ANSI, CSA Certified, UL Listed |
| Description | Smooth Face |
| HP | 1/2 hp |
| Voltage | 125 VAC |
| Sub-Category | Single Receptacles |
| Phase | Single |
| Material | Thermoplastic Nylon (Body and Face) |
| Overall Depth | 1.1 in |
| Number of Outlets | 1 |
| Polarized | Yes |
| Grounding | Grounded |
| GFCI | No |
| Maximum Operating Temperature | 140 deg F |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Horsepower Rating | 0.5 HP |
| Contact Material | Brass |
| Face Plate Height | 2.4 in |
| Includes Mounting Hardware | Yes |
| Minimum Operating Temperature | -40 deg F |
| Grade | Federal Specification |
| Current Rating | 15 A |
| NEMA Receptacle Configuration | 5-15R |
| Voltage Rating | 125V AC |
| Receptacle Type | Single |
| Minimum Wire Size | 14 AWG |
| NEMA Enclosure Rating | Not Rated |
| Connection Orientation | Straight |
| Resistance Properties | Tamper Resistant |
| Hazardous Location Specification | Not Applicable |
| Market | Commercial |
| Face Plate Width | 1.3 in |
| Housing Color | Brown |
| Maximum Wire Size | 10 AWG |
| Cover Type | No Cover |
| Housing Material | Nylon |
| Mount Hole Center-to-Center Height | 3.3 in |
| Termination | Side Wire |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Strap Material | Zinc-Plated Steel |
| Screw Terminal Torque | 14 to 18 in-lb |
| Amperage | 15 A |
| ANSI | C-73 |
| Clamp Nuts | Zinc-Plated Steel |
| CSA C22.2 No. 42 | File 152105 |
| Device Type | Single Receptacle Outlet |
| Current Limiting | Full Rated Current |
| NEMA | WD-6 |
| Body Material | Thermoplastic Nylon |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| At Rated Voltage | 0.5 HP |
| Line Contacts | Brass |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Operating Temperature | -40°C to 60°C |
| Ground Clips | Brass-Plated |
| Face Material | Thermoplastic Nylon |
| Wire | 3 |
| Pole | 2 |
| Terminal Screws | Brass 10-32 |
| UL498 | File E13399 |
| Grounding Screw | Brass 8-32 |
| Feature | Tamper-Resistant|Smooth Face |
| Terminal Accom. | 14-10 AWG |
| Package Quantity | 1 |
