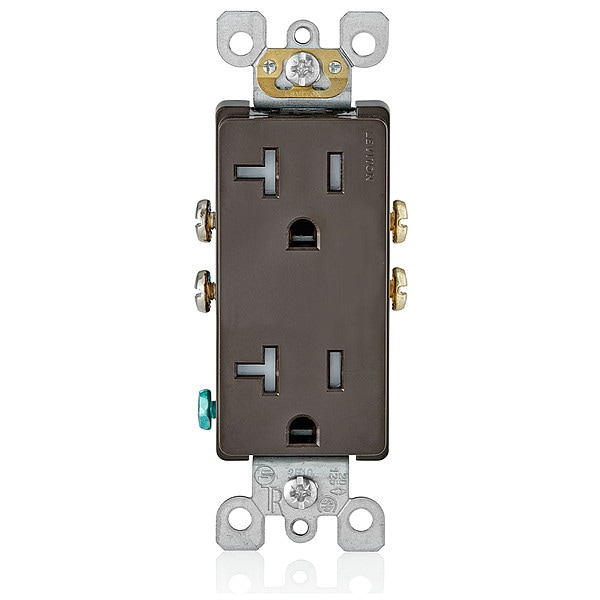

Receptacle, 20 A Amps, 125VAC, Decorator Duplex Outlet, 5-20R, Brown
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Residential Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | CSA Certified, NOM Certified, RoHS Compliant, UL Listed |
| Color | Brown |
| Phase | Single |
| Wiring Method | Side |
| Voltage | 125 VAC |
| Sub-Category | Duplex Receptacles |
| Material | Thermoplastic |
| Number of Outlets | 2 |
| Face Plate Height | 2.8 in |
| Housing Color | Brown |
| NEMA Enclosure Rating | Not Rated |
| Market | Residential |
| Cover Type | No Cover |
| Resistance Properties | Tamper Resistant |
| Face Plate Width | 1.4 in |
| Mount Type | Flush |
| Polarized | Yes |
| Hazardous Location Specification | Not Applicable |
| NEMA Receptacle Configuration | 5-20R |
| Voltage Rating | 125V AC |
| Connection Orientation | Straight |
| Wire Connection Type | Screw Terminals |
| Grade | Federal Specification |
| Current Rating | 20 A |
| GFCI | No |
| Housing Material | Thermoplastic |
| Mount Hole Center-to-Center Height | 3.3 in |
| Overall Depth | 0.9 in |
| Receptacle Type | Decorator Duplex |
| Grounding | Grounded |
| Product Type | Decora |
| Amperage | 20 A |
| UL 498 | File E13399 |
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
| Type | Duplex Receptacle |
| NEMA | 5-20R |
| Feature | Tamper-Resistant |
| Torque Range | 14 -18 in.-lbs |
| Package Quantity | 1 |
