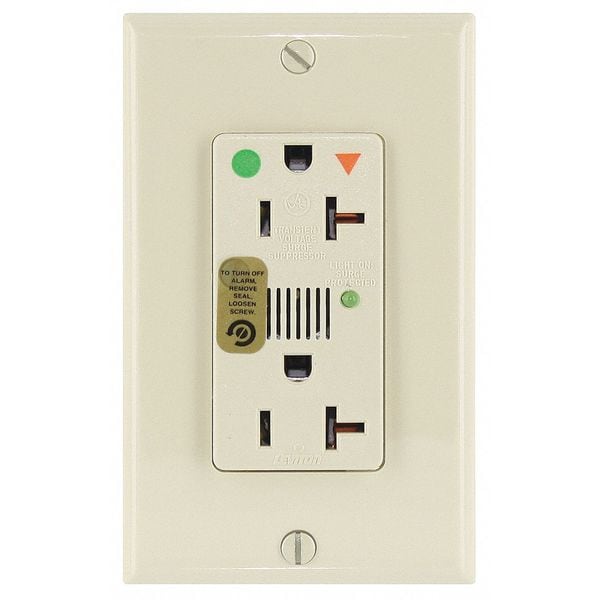

Receptacle, 20 A Amps, 125VAC, Decorator Duplex Outlet, 5-20R, Ivory
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Outlet |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Material | Nylon (Body and Face) |
| Color | Ivory |
| Phase | Single |
| Standards | ANSI C73, CSA C22.2, UL 1449 3rd Edition Listed, UL 498, UL 498HG File E13399 |
| HP | 1 hp |
| Sub-Category | Duplex Receptacles |
| Voltage | 125 VAC |
| Wiring Method | Back, Side |
| NEMA Enclosure Rating | Not Rated |
| Housing Color | Ivory |
| Connection Orientation | Straight |
| Minimum Wire Size | 14 AWG |
| Polarized | Yes |
| Cover Type | No Cover |
| Grade | Hospital Grade |
| Maximum Wire Size | 10 AWG |
| Grounding | Isolated Grounding |
| Contact Material | Brass |
| Current Rating | 20 A |
| Maximum Operating Temperature | 140 deg F |
| Number of Outlets | 2 |
| Surge Protection | Yes |
| NEMA Receptacle Configuration | 5-20R |
| Mount Type | Flush |
| Horsepower Rating | 1 HP |
| Hazardous Location Specification | Not Applicable |
| Voltage Rating | 125V AC |
| Minimum Operating Temperature | -40 deg F |
| Receptacle Type | Decorator Duplex |
| Housing Material | Nylon |
| Maximum Surge Current | 27 kA |
| Resistance Properties | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Pole | 2 |
| Grounding Screw | Brass-Plated Steel |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Torque Range | 14-16 inch pounds |
| Joules Rating | 720 |
| Ground Clips | Brass-Plated Steel |
| Terminal Screws | Steel |
| UL498HG | File E13399 |
| Maximum Surge Current, Per Mode (Per Phase) | 27kA (L-N:18kA, L-G:9kA) |
| Terminal Accom. | 14-10 AWG |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Current Limiting | Full Rated Current |
| NEMA | WD-6 |
| At Rated Voltage | 1 HP |
| Yoke | Zinc-Plated Steel |
| MCOV | 150V rms |
| Device Type | Duplex Receptacle Outlet |
| Amperage | 20 A |
| Agency Certifications | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
| Diagnostics | Indicator Light & Audible Alarm |
| Clamp Nuts | Zinc-Plated Steel |
| ANSI | C-73 |
| Termination | Back, Side Wire |
| Short Circuit Current Rating | 5kA |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Face Material | Nylon |
| Function | Ground |
| Line Contacts | Brass |
| Operating Temperature | -40°C to 60°C |
| Wire | 3 |
| Body Material | Nylon |
| Nominal Discharge Current Rating | 3kA |
| Shutter Mechanism | Delrin® Acetal |
| Package Quantity | 1 |
