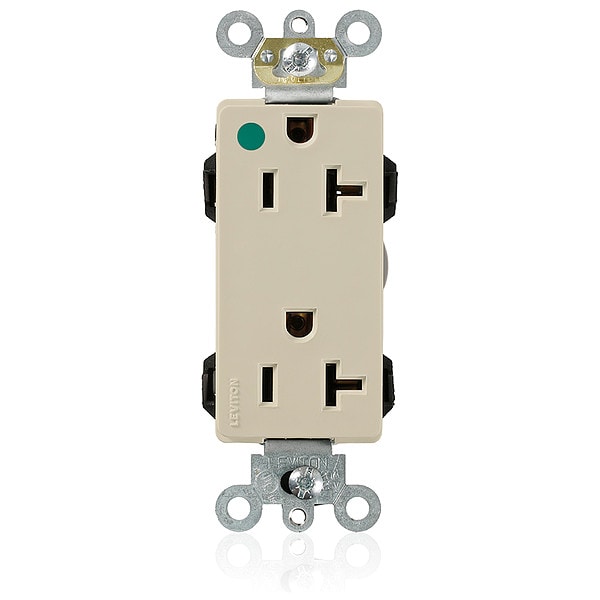

Receptacle, 20 A Amps, 125VAC, Decorator Duplex Outlet, 5-20R, Ivory
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Extra Heavy-Duty Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Sub-Category | Duplex Receptacles |
| HP | 1 hp |
| Standards | ANSI, cULus Listed, NOM Certified |
| Wiring Method | Not Applicable |
| Description | Smooth Face |
| Phase | Single |
| Material | Nylon (Base) |
| Maximum Operating Temperature | 140 deg F |
| Grade | Hospital Grade |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Ivory |
| NEMA Receptacle Configuration | 5-20R |
| Includes Mounting Hardware | Yes |
| NEMA Enclosure Rating | Not Rated |
| Resistance Properties | Not Applicable |
| Number of Outlets | 2 |
| Hazardous Location Specification | Not Applicable |
| Current Rating | 20 A |
| Housing Material | Nylon |
| GFCI | No |
| Polarized | Yes |
| Mount Type | Flush |
| Receptacle Type | Decorator Duplex |
| Contact Material | Brass |
| Wire Connection Type | Modular Wiring |
| Horsepower Rating | 1 HP |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| Includes | Wallplate |
| Package Quantity | 1 |
