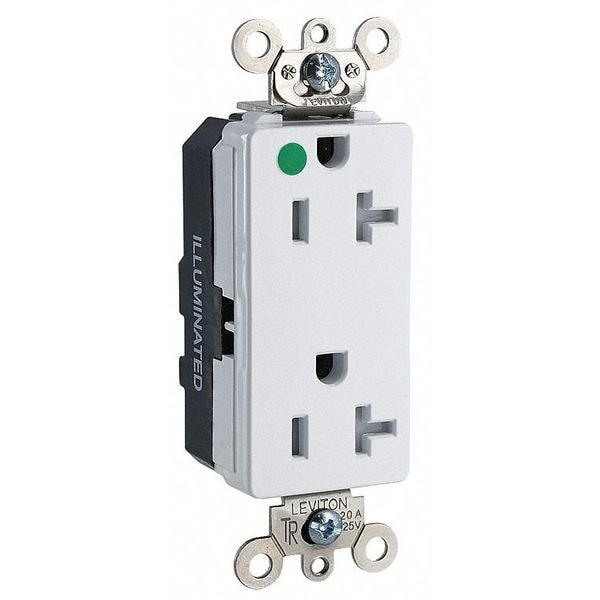

Receptacle, 20 A Amps, 125VAC, Decorator Duplex Outlet, 5-20R, White
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Extra Heavy-Duty Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | ANSI, CSA Certified, Federal Specification, RoHS Compliant, UL Listed |
| Sub-Category | Duplex Receptacles |
| Special Features | Illuminated |
| Description | Smooth Face |
| Phase | Single |
| Material | Nylon (Body and Face) |
| Color | White |
| Voltage | 125 VAC |
| HP | 1 hp |
| Wiring Method | Not Applicable |
| NEMA Receptacle Configuration | 5-20R |
| Housing Color | White |
| NEMA Enclosure Rating | Not Rated |
| Mount Type | Flush |
| Minimum Operating Temperature | -40 deg F |
| Housing Material | Nylon |
| Includes Mounting Hardware | Yes |
| Contact Material | Brass |
| Horsepower Rating | 1 HP |
| Resistance Properties | Tamper Resistant |
| Current Rating | 20 A |
| GFCI | No |
| Voltage Rating | 125V AC |
| Grade | Hospital Grade Fed. Spec. |
| Connection Orientation | Straight |
| Polarized | Yes |
| Hazardous Location Specification | Not Applicable |
| Wire Connection Type | Modular Wiring |
| Receptacle Type | Decorator Duplex |
| Number of Outlets | 2 |
| Grounding | Grounded |
| Maximum Operating Temperature | 140 deg F |
| Cover Type | No Cover |
| CSA | 152105 |
| Feature | Tamper-Resistant|Illuminated|Smooth Face |
| NEMA | WD-6, WD-1 |
| Ground Clips | Brass |
| Device Type | Duplex Receptacle Outlet |
| Line Contacts | Brass |
| Wire | 3 |
| Termination | Modular |
| Pole | 2 |
| Lead Identification | Leads identified in accordance with UL 498 (black, white & green) |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| ANSI | C-73 |
| Body Material | Nylon |
| Current Limiting | Full Rated Current |
| Face Material | Nylon |
| Operating Temperature | -40°C to 60°C |
| Locking Pins | Solid Brass |
| Illumination | 100,000 HR Green LED's |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Shutter Mechanism | Delrin® Acetal |
| Strap Material | Brass |
| Package Quantity | 1 |
