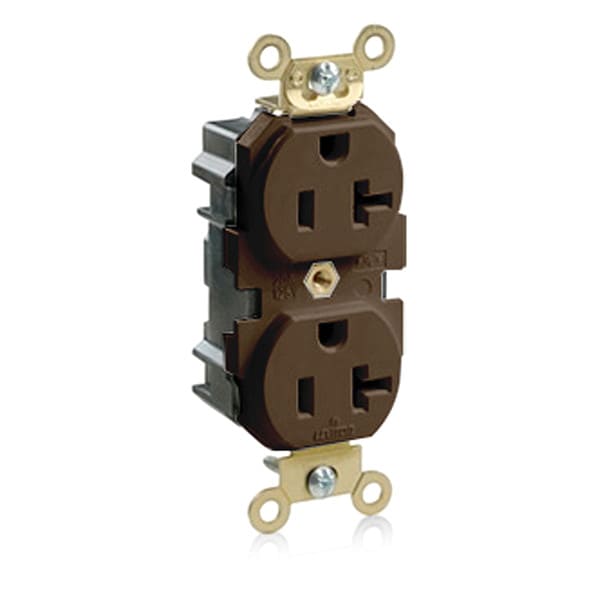

Receptacle, 20 A Amps, 125VAC, Duplex Outlet, 5-20R, Brown
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Extra Heavy-Duty Industrial Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Method | Not Applicable |
| Material | Nylon (Base) |
| Sub-Category | Duplex Receptacles |
| Voltage | 125 VAC |
| HP | 1 hp |
| Standards | ANSI, CSA Certified, cULus Listed, NOM Certified, RoHS Compliant, UL Federal Specification |
| Phase | Single |
| Description | Smooth Face |
| Cover Material | Nylon |
| Color | Brown |
| Horsepower Rating | 1 HP |
| Grounding | Grounded |
| Contact Material | Brass |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | Not Rated |
| Includes | Wallplate |
| Grade | Federal Specification |
| Receptacle Type | Duplex |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Brown |
| Wire Connection Type | Modular Wiring |
| Polarized | Yes |
| GFCI | No |
| Market | Industrial |
| Number of Outlets | 2 |
| Maximum Operating Temperature | 140 deg F |
| NEMA Receptacle Configuration | 5-20R |
| Voltage Rating | 125V AC |
| Housing Material | Nylon |
| Cover Type | No Cover |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Not Applicable |
| Connection Orientation | Straight |
| Mount Type | Flush |
| Current Rating | 20 A |
| Base Material | Nylon |
| NEMA | WD-6, WD-1 |
| Operating Temperature | -40°C to 60°C |
| Current Limiting | Full Rated Current |
| cULus | Listed |
| Locking Pins | Solid Brass |
| Feature 4 | Smooth Face |
| Termination | Modular |
| Line Contacts | Brass |
| Maximum Working Voltage | 125V as rated |
| UL498 | File E13399 |
| Flammability | Rated V-2 per UL94 |
| At Rated Voltage | 1 HP |
| Wire | 3 |
| Pole | 2 |
| Device Type | Duplex Receptacle Outlet |
| Yoke | Brass |
| Standards and Certifications | C-UL-US |
| Current Interrupting | Certified for current interrupting at full rated current |
| ANSI | C-73 |
| Strap Material | Brass |
| CSA C22.2 No. 42 | File 152105 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Ground Clips | Brass |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Mounting Strap | Brass |
| Amperage | 20 A |
| Mounting Screws | Triple Combination Head, Steel |
| Bushing | Solid Brass |
| NOM Certified | 57 |
| Package Quantity | 1 |
