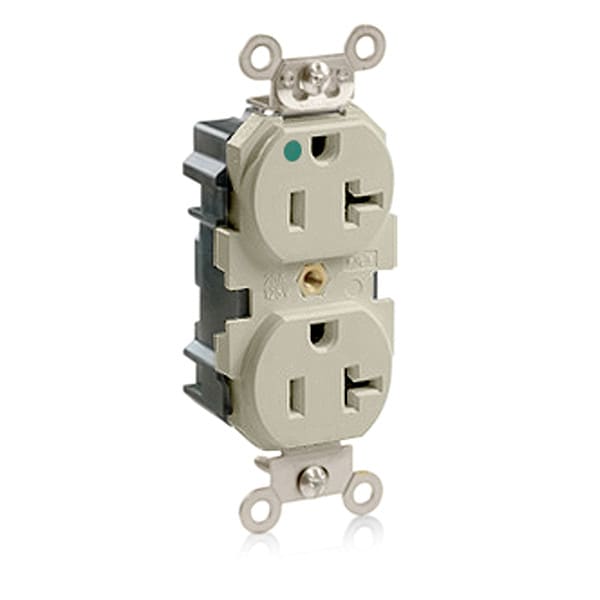

Contacto eléctrico, 20 amperios, 125VAC, salida dúplex, 5-20R, marfil.
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Description | Smooth Face |
| Color | Ivory |
| Cover Material | Nylon |
| HP | 1 hp |
| Wiring Method | Not Applicable |
| Standards | ANSI, RoHS Compliant |
| Phase | Single |
| Sub-Category | Duplex Receptacles |
| Voltage | 125 VAC |
| Material | Nylon (Base) |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Resistance Properties | Tamper Resistant |
| Grade | Hospital Grade |
| Connection Orientation | Straight |
| Mount Hole Center-to-Center Height | 4.1 in |
| Cover Type | No Cover |
| Maximum Operating Temperature | 140 deg F |
| GFCI | No |
| Receptacle Type | Duplex |
| Mount Type | Flush |
| Housing Color | Ivory |
| Number of Outlets | 2 |
| Wire Connection Type | Modular Wiring |
| Grounding | Grounded |
| Polarized | Yes |
| NEMA Receptacle Configuration | 5-20R |
| Contact Material | Brass |
| NEMA Enclosure Rating | Not Rated |
| Minimum Operating Temperature | -40 deg F |
| Includes Mounting Hardware | Yes |
| Hazardous Location Specification | Not Applicable |
| Housing Material | Nylon |
| Maximum Working Voltage | 125V as rated |
| Bushing | Solid Brass |
| Termination | Modular |
| Mounting Strap | Galvanized steel |
| NEMA | WD-6, WD-1 |
| Ground Clips | Brass |
| Mounting Screws | Triple Combination Head, Steel |
| Shutter Mechanism | Delrin® Acetal |
| Line Contacts | Brass |
| Feature | Tamper-Resistant|Smooth Face |
| Pole | 2 |
| cULus | Listed |
| Amperage | 20 A |
| Operating Temperature | -40°C to 60°C |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Device Type | Duplex Receptacle Outlet |
| Base Material | Nylon |
| NOM Certified | 57 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Locking Pins | Solid Brass |
| ANSI | C-73 |
| Wire | 3 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Package Quantity | 1 |
