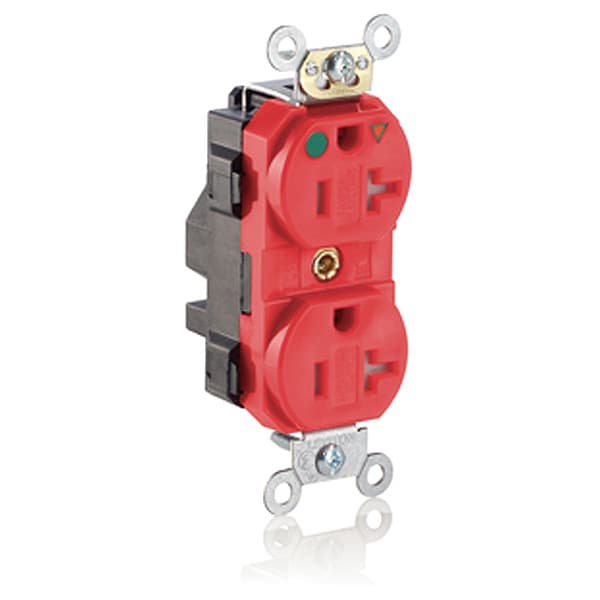

Receptáculo, 20 amperios, 125VCA, toma doble, 5-20R, rojo
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Tamper Resistant | Yes |
| Color - Plugs and Receptacles | Red |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Color | Red |
| Description | Smooth Face |
| Phase | Single |
| Wiring Method | Not Applicable |
| Voltage | 125 VAC |
| HP | 1 hp |
| Sub-Category | Duplex Receptacles |
| Standards | ANSI, CSA Certified, RoHS Compliant, UL Federal Specification |
| Material | Nylon (Body and Face) |
| Receptacle Type | Duplex |
| Grounding | Isolated Grounding |
| Cover Type | No Cover |
| Resistance Properties | Tamper Resistant |
| NEMA Enclosure Rating | Not Rated |
| Maximum Operating Temperature | 140 deg F |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Minimum Operating Temperature | -40 deg F |
| Current Rating | 20 A |
| Number of Outlets | 2 |
| Mount Hole Center-to-Center Height | 4.1 in |
| Wire Connection Type | Modular Wiring |
| Housing Color | Red |
| NEMA Receptacle Configuration | 5-20R |
| Hazardous Location Specification | Not Applicable |
| Polarized | Yes |
| Includes Mounting Hardware | Yes |
| GFCI | No |
| Contact Material | Brass |
| Mount Type | Flush |
| Connection Orientation | Straight |
| Housing Material | Nylon |
| Grade | Hospital Grade Fed. Spec. |
| Current Limiting | Full Rated Current |
| UL 498 | File E13399 |
| Locking Pins | Solid Brass |
| Wire | 3 |
| Termination | Modular |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| ANSI | C-73 |
| NEMA | WD-6 |
| Isolated Ground System | Brass |
| Line Contacts | Brass |
| Face Material | Nylon |
| Strap Material | Galvanized Steel |
| Function | Ground |
| Pole | 2 |
| Ground Clips | Brass |
| CSA C22.2 No. 42 | File 152105 |
| Device Type | Duplex Receptacle Outlet |
| Shutter Mechanism | Delrin® Acetal |
| Feature | Tamper-Resistant|Smooth Face |
| Amperage | 20 A |
| Lead Identification | Leads identified in accordance with UL 498 (black, white & green) |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Package Quantity | 1 |
