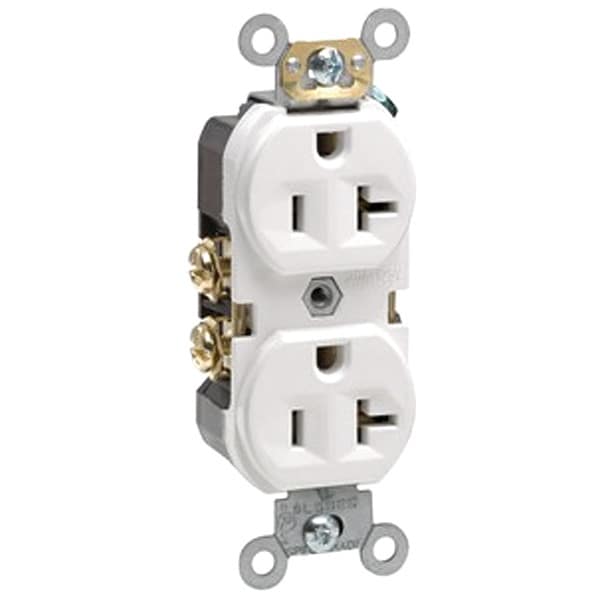

Receptacle, 20 A Amps, 125VAC, Duplex Outlet, 5-20R, White
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Commercial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Color | White |
| HP | 1 hp |
| Wiring Method | Back, Side |
| Voltage | 125 VAC |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399 |
| Phase | Single |
| Special Features | Indented Face |
| Sub-Category | Duplex Receptacles |
| Material | Polypropylene (Body and Face) |
| Wire Connection Type | Screw Terminals |
| Receptacle Type | Duplex |
| Grade | Federal Specification |
| Horsepower Rating | 1 HP |
| Resistance Properties | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Number of Outlets | 2 |
| Contact Material | Brass |
| Current Rating | 20 A |
| Housing Color | White |
| Polarized | Yes |
| GFCI | No |
| Maximum Wire Size | 10 AWG |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 140 deg F |
| Mount Type | Flush |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| NEMA Receptacle Configuration | 5-20R |
| Minimum Wire Size | 14 AWG |
| NEMA Enclosure Rating | Not Rated |
| Minimum Operating Temperature | -40 deg F |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| Market | Commercial |
| Ground Clips | Brass |
| Clamp Nuts | Brass |
| Operating Temperature | -40°C to 60°C |
| Termination | Back, Side Wire |
| Terminal Screws | Brass 8-32 |
| Face Material | Polypropylene |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| ANSI | C-73 |
| Body Material | Polypropylene |
| Pole | 2 |
| Amperage | 20 A |
| Feature | Indented Face |
| Current Limiting | Full Rated Current |
| Terminal Accom. | 14-10 AWG |
| Screw Terminal Torque | 14 to 18 in-lb |
| Device Type | Duplex Receptacle Outlet |
| Wire | 3 |
| At Rated Voltage | 1 HP |
| Dielectric Voltage | Withstands 2000V per UL498 |
| UL498 | File E13399 |
| Strap Material | Zinc-Plated Steel |
| CSA C22.2 No. 42 | File 152105 |
| NEMA | WD-6, WD-1 |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Brass Thick |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Package Quantity | 1 |
