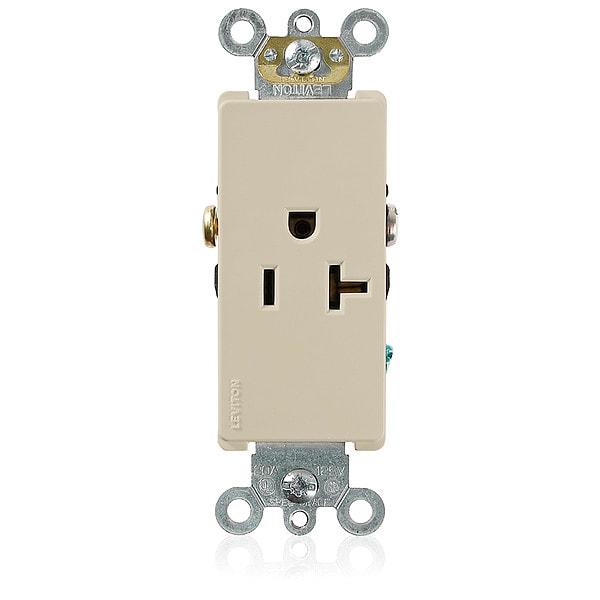

Receptacle, 20 A Amps, 125VAC, Single Outlet, 5-20R, Ivory
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Outlet |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Commercial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Method | Back, Side |
| Phase | Single |
| Description | Smooth Face |
| Material | Thermoplastic Nylon (Body and Face) |
| Standards | ANSI C73, NEMA WD-6, UL 498 File E13399 |
| HP | 1 hp |
| Sub-Category | Single Receptacles |
| UL 94 Flammability Rating | V-2 |
| Connection Orientation | Straight |
| Grounding | Grounded |
| GFCI | No |
| Market | Commercial |
| Minimum Operating Temperature | -40 deg F |
| Number of Outlets | 1 |
| Face Plate Width | 1.3 in |
| Face Plate Height | 2.8 in |
| Maximum Operating Temperature | 140 deg F |
| Resistance Properties | Not Applicable |
| Includes | Strap Material |
| Receptacle Type | Single |
| Maximum Wire Size | 10 AWG |
| NEMA Receptacle Configuration | 5-20R |
| Housing Color | Ivory |
| Includes Mounting Hardware | Yes |
| Minimum Wire Size | 14 AWG |
| NEMA Enclosure Rating | Not Rated |
| Polarized | Yes |
| Voltage Rating | 125V AC |
| Contact Material | Brass |
| Horsepower Rating | 1 HP |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Cover Type | No Cover |
| Housing Material | Thermoplastic |
| Mount Type | Flush |
| Hazardous Location Specification | Not Applicable |
| Grade | Federal Specification |
| Package Quantity | 1 |
