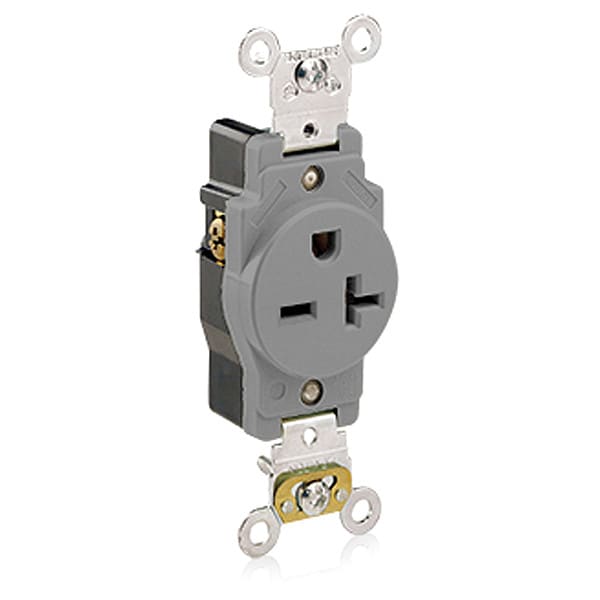

Receptacle, 20 A Amps, 250VAC, Single Outlet, 6-20R, Gray
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Heavy-Duty Industrial Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-20R |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399, UL Federal Specification WC-596 File E13399 |
| Material | Thermoplastic Nylon (Body and Face) |
| Wiring Method | Back, Side |
| Sub-Category | Single Receptacles |
| Description | Smooth Face |
| HP | 2 hp |
| Phase | Three |
| UL 94 Flammability Rating | V-2 |
| Current Rating | 20 A |
| Face Plate Width | 1.3 in |
| Resistance Properties | Not Applicable |
| Mount Type | Flush |
| GFCI | No |
| Market | Commercial, Industrial |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 140 deg F |
| Includes | Grounding Clip |
| Grounding | Grounded |
| NEMA Receptacle Configuration | 6-20R |
| Receptacle Type | Single |
| Number of Outlets | 1 |
| Cover Type | No Cover |
| Polarized | Yes |
| Minimum Wire Size | 14 AWG |
| Grade | Federal Specification |
| Contact Material | Brass |
| Voltage Rating | 250V AC |
| Minimum Operating Temperature | -40 deg F |
| Overall Depth | 1.1 in |
| Hazardous Location Specification | Not Applicable |
| Horsepower Rating | 2 HP |
| Mount Hole Center-to-Center Height | 3.3 in |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Housing Color | Gray |
| Housing Material | Nylon |
| Package Quantity | 1 |
