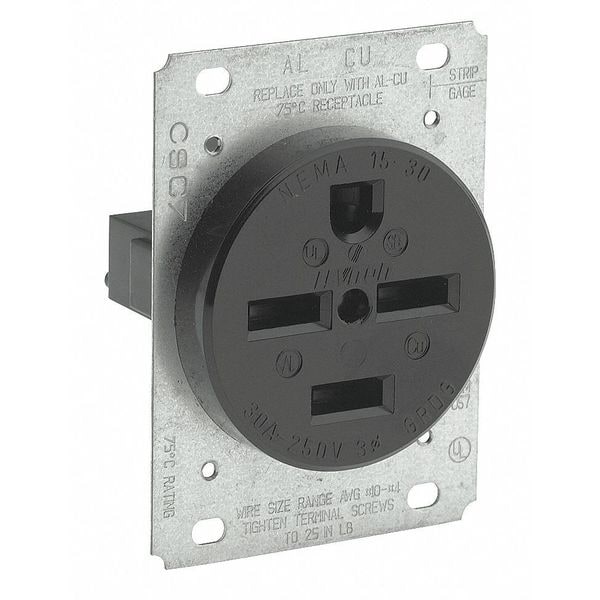

Receptacle, 30 A Amps, 250VAC, Flush Mount, Single Outlet, 15-30R, Black
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 15-30R |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Voltage | 250 VAC |
| Number of Gangs | 1 |
| HP | 3 hp |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, UL 498 File E13399 |
| Sub-Category | Single Receptacles |
| Phase | Three |
| NEMA Configuration | 15-30 |
| IP Rating | Not Rated |
| Color | Black |
| Item - Plugs and Receptacles | Power Device |
| Material | Nylon (Body and Face) |
| Wiring Method | Side |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2 |
| Polarized | Yes |
| Current Rating | 30 A |
| Hub Type | Dead End |
| AFCI | No |
| Wire Connection Type | Screw Terminals |
| Receptacle Type | Single |
| Flange Shape | Rectangular |
| Housing Material | Nylon |
| Grounding | Grounded |
| Maximum Operating Temperature | 140 deg F |
| NEMA Receptacle Configuration | 15-30R |
| Contact Material | Brass |
| GFCI | No |
| Grade | Federal Specification |
| Key Resistance Properties | Tamper Resistant |
| Face Plate Width | 2.8 in |
| Cover Type | No Cover |
| Wire Connection Types | Screw Terminals |
| Face Plate Height | 3.8 in |
| Mount Type | Recessed |
| Surge Protection | No |
| Reset Type | Not Applicable |
| Number of Poles & Wires | 3 Pole / 4 Wire |
| Hazardous Location Specification | Not Applicable |
| Minimum Wire Size | 4 AWG |
| Resistance Properties | Tamper Resistant |
| Voltage Rating | 250V AC |
| Housing Color | Black |
| Flange Type | Non-Flanged |
| Primary Resistance Properties | Tamper Resistant - Tamper Resistant - 30 A |
| NEMA Enclosure Rating | Not Rated |
| Horsepower Rating | 3 HP |
| Shrouded | No |
| Additional Electrical Protections | Standard Protection |
| Mount Hole Center-to-Center Height | 3.3 in |
| Additional Electrical Protection | Standard Protection |
| Number of Outlets | 1 |
| Market | Commercial, Industrial |
| Minimum Operating Temperature | -40 deg F |
| NEMA | WD-6 |
| Pole | 3 |
| Current Limiting | Full Rated Current |
| Amperage | 30 A |
| At Rated Voltage | 3 HP |
| Operating Temperature | -40°C to 60°C |
| Face Material | Nylon |
| Wire | 4 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Terminal Accom. | Up to 4 AWG |
| Dielectric Voltage | Withstands 2000V per UL498 |
| CSA C22.2 No. 42 | File 152105 |
| Device Type | Power Device |
| ANSI | C-73 |
| Body Material | Nylon |
| Line Contacts | Brass Double-Wipe |
| Strap Material | Galvanized Steel |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| UL498 | File E13399 |
| Package Quantity | 1 |
