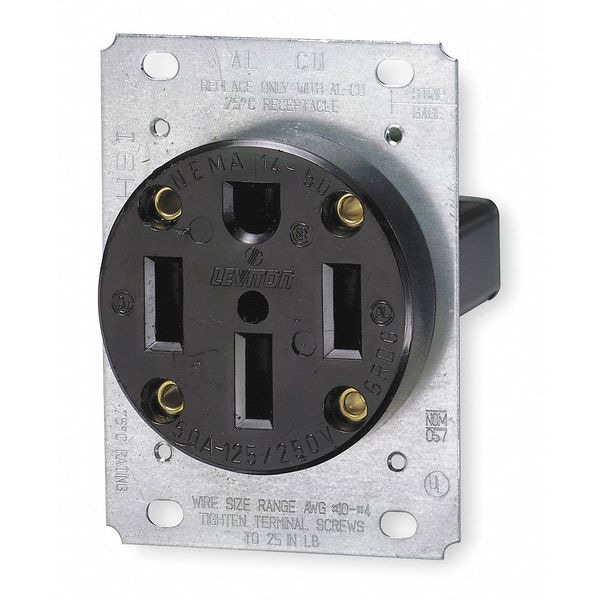

Receptacle, 50 A Amps, 125/250VAC, Flush Mount, Single Outlet, 14-50R, Black
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 125/250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 14-50R |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Single |
| Wiring Method | Side |
| Material | Thermoplastic (Body and Face) |
| HP | 3 hp |
| Sub-Category | Single Receptacles |
| Standards | ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498 |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 140 deg F |
| Cover Type | No Cover |
| NEMA Receptacle Configuration | 14-50R |
| NEMA Enclosure Rating | Not Rated |
| Mount Type | Flush |
| Polarized | No |
| Grade | Federal Specification |
| Contact Material | Copper Alloy |
| Horsepower Rating | 3 HP |
| Current Rating | 50 A |
| Face Plate Height | 3.8 in |
| Includes | Strap Material |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| Market | Industrial |
| Voltage Rating | 125/250V AC |
| Hazardous Location Specification | Not Applicable |
| Receptacle Type | Single |
| Face Plate Width | 2.4 in |
| Grounding | Grounded |
| GFCI | No |
| Number of Outlets | 1 |
| Housing Material | Thermoplastic |
| UL 94 Flammability Rating | V-2 |
| Includes Mounting Hardware | Yes |
| Minimum Operating Temperature | -40 deg F |
| Package Quantity | 1 |
