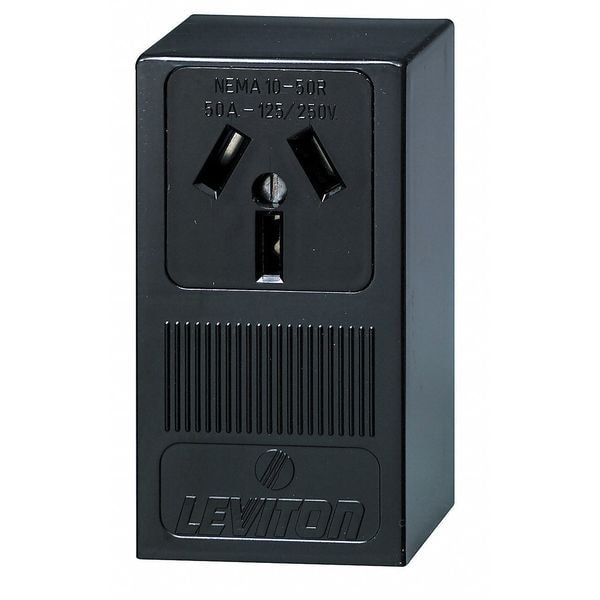

Receptacle, 50 A Amps, 125/250VAC, Single Outlet, 10-50R, Black
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 125/250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 10-50R |
| Color - Plugs and Receptacles | Black |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Wiring Method | Side |
| Sub-Category | Single Receptacles |
| Standards | RoHS Compliant, UL498: File E13399 |
| Color | Black |
| Voltage | 125/250 VAC |
| Phase | Single |
| Number of Outlets | 1 |
| Cover Type | No Cover |
| Current Rating | 50 A |
| NEMA Enclosure Rating | Not Rated |
| Maximum Operating Temperature | 140 deg F |
| Resistance Properties | Not Applicable |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Housing Material | Thermoplastic |
| Connection Orientation | Straight |
| Hazardous Location Specification | Not Applicable |
| Receptacle Type | Single |
| UL 94 Flammability Rating | V-2 |
| Grade | Federal Specification |
| Voltage Rating | 125/250V AC |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Black |
| NEMA Receptacle Configuration | 10-50R |
| Grounding | Non-Grounded |
| Polarized | No |
| Wire Connection Type | Screw Terminals |
| Mount Type | Surface |
| GFCI | No |
| Terminal Accom. | #4 - #8AWG |
| ANSI | C-73 |
| Strap Material | Galvanized Steel |
| Body Material | Thermoplastic |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Pole | 3 |
| NEMA | WD-6 |
| CSA C22.2 No. 42 | File 152105 |
| Flammability | Rated V-2 per UL 94 |
| Wire | 3 |
| At Rated Voltage | 3 HP |
| Current Limiting | Full Rated Current |
| Face Material | Thermoplastic |
| UL498 | File E13399 |
| Operating Temperature | -40°C to 60°C |
| Amperage | 50 A |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Package Quantity | 1 |
