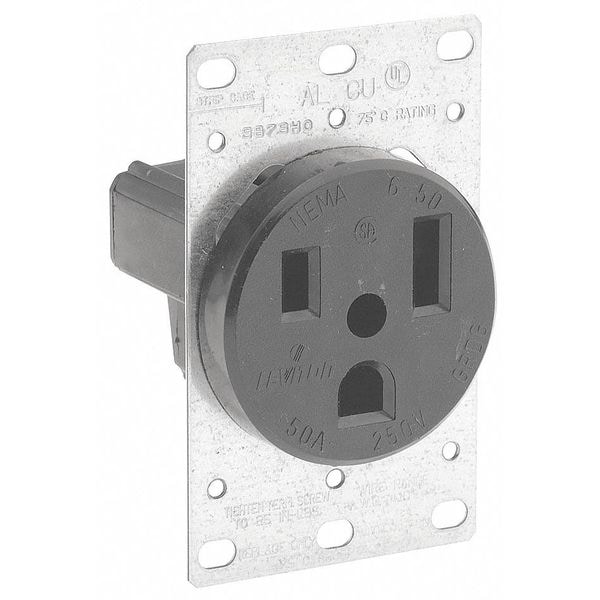

Receptacle, 50 A Amps, 250VAC, Flush Mount, Single Outlet, 6-50R, Black
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-50R |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Three |
| Voltage | 250 VAC |
| HP | 3 hp |
| Wiring Method | Side |
| Sub-Category | Single Receptacles |
| Standards | ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498 |
| Material | Thermoplastic (Body and Face) |
| Color | Black |
| Number of Outlets | 1 |
| Includes Mounting Hardware | Yes |
| Cover Type | No Cover |
| Market | Industrial |
| Voltage Rating | 250V AC |
| Mount Type | Flush |
| Horsepower Rating | 3 HP |
| Polarized | Yes |
| Connection Orientation | Straight |
| Housing Material | Thermoplastic |
| Grade | Federal Specification |
| Current Rating | 50 A |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Grounding | Grounded |
| Receptacle Type | Single |
| Housing Color | Black |
| NEMA Receptacle Configuration | 6-50R |
| Line Contacts | Brass |
| UL | UL 498, UL 486E |
| Wire | 3 |
| Body Material | Polypropylene |
| Current Limiting | Full Rated Current |
| Amperage | 50 A |
| Terminal ID | Brass screws = Hot; Green screw = Ground |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal Accom. | #4 AWG |
| Flammability | Rated V-2 per UL 94 |
| Face Material | Polypropylene |
| Pole | 2 |
| At Rated Voltage | 3 HP |
| Strap Material | Galvanized Steel |
| CSA | 22.2 No 42, C22.2 No.14, C22.2 No.65 |
| Operating Temperature | -40°C to 60°C |
| NEMA | WD-6 |
| ANSI | C73 |
| Package Quantity | 1 |
