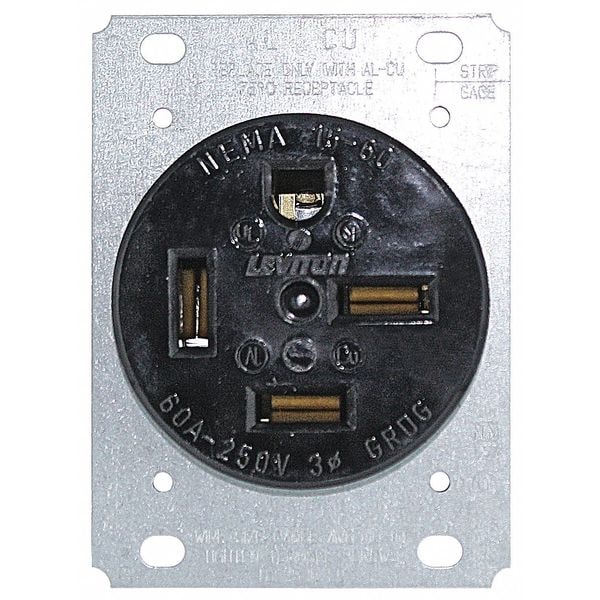

Receptacle, 60 A Amps, 250VAC, Flush Mount, Single Outlet, 15-60R, Black
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 250VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 15-60R |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Item - Plugs and Receptacles | Receptacle |
| Wiring Method | Side |
| HP | 10 HP |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105 |
| Color | Black |
| Sub-Category | Single Receptacles |
| Voltage | 250 VAC |
| Material | Nylon (Body and Face) |
| IP Rating | Not Rated |
| Phase | Three |
| Number of Gangs | 1 |
| Housing Color | Black |
| NEMA Receptacle Configuration | 15-60R |
| Flange Shape | Rectangular |
| Current Rating | 60 A |
| Maximum Operating Temperature | 140 deg F |
| Resistance Properties | Tamper Resistant |
| Grounding | Grounded |
| Receptacle Type | Single |
| Housing Material | Nylon |
| Flange Type | Non-Flanged |
| GFCI | No |
| Shrouded | No |
| Contact Material | Brass |
| AFCI | No |
| Market | Commercial, Industrial |
| Cover Type | No Cover |
| Reset Type | Not Applicable |
| Minimum Wire Size | 4 AWG |
| Hazardous Location Specification | Not Applicable |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | V-2 |
| Minimum Operating Temperature | -40 deg F |
| Connection Orientation | Straight |
| NEMA Enclosure Rating | Not Rated |
| Mount Type | Recessed |
| Grade | Federal Specification |
| Surge Protection | No |
| Hub Type | Dead End |
| Polarized | Yes |
| Horsepower Rating | 10 HP |
| Number of Outlets | 1 |
| Voltage Rating | 250V AC |
| Line Contacts | Brass Double-Wipe |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal Accom. | Up to 4 AWG |
| Face Material | Nylon |
| Body Material | Nylon |
| Feature | 3-Phase |
| Pole | 3 |
| Strap Material | Galvanized Steel |
| At Rated Voltage | 10 HP |
| Current Limiting | Full Rated Current |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire | 4 |
| CSA C22.2 No. 42 | File 152105 |
| Torque Range | 25 in-lbs |
| Operating Temperature | -40°C to 60°C |
| Amperage | 60 A |
| ANSI | C-73 |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| NEMA | 15-60R |
| Device Type | Receptacle |
| Package Quantity | 1 |
