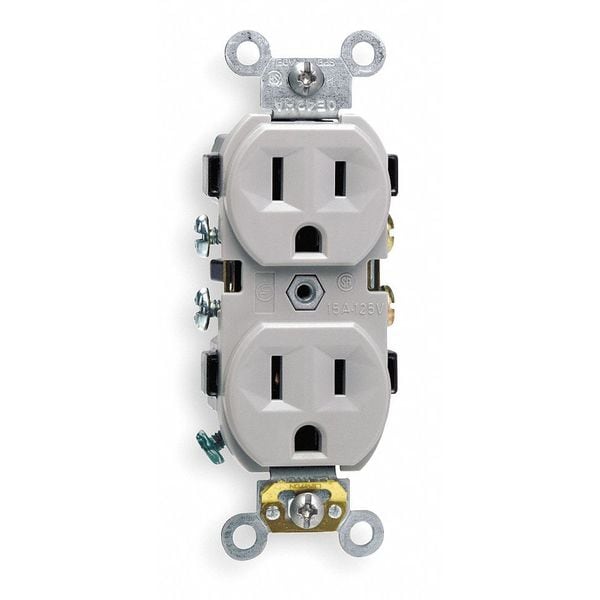

Receptacle
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Commercial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Special Features | Indented Face |
| Material | Nylon (Body and Face) |
| Item | Receptacle |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side |
| Voltage | 125 VAC |
| Sub-Category | Duplex Receptacles |
| Color | Gray |
| HP | 1/2 hp |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399 |
| Phase | Single |
| Number of Poles | 2 |
| Wiring Method | Side |
| Number of Wires | 3 |
| Grounding | Grounded |
| Horsepower Rating | 0.5 HP |
| Receptacle Type | Duplex |
| NEMA Enclosure Rating | Not Rated |
| Cover Type | No Cover |
| Maximum Operating Temperature | 140 deg F |
| Voltage Rating | 125 V |
| Housing Color | Gray |
| Minimum Wire Size | 14 AWG |
| Polarized | Yes |
| NEMA Receptacle Configuration | 5-15R |
| Mount Type | Flush |
| Grade | Federal Specification |
| Minimum Operating Temperature | -40 deg F |
| Housing Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Contact Material | Brass |
| Maximum Wire Size | 10 AWG |
| Market | Commercial |
| UL 94 Flammability Rating | V-2 |
| Resistance Properties | Not Applicable |
| Current Rating | 15 A |
| GFCI | No |
| Hazardous Location Specification | Not Applicable |
| Connection Orientation | Straight |
| Number of Outlets | 2 |
| Pole | 2 |
| Body Material | Nylon |
| At Rated Voltage | 0.5 HP |
| CSA C22.2 No. 42 | File 152105 |
| Face Material | Nylon |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Device Type | Duplex Receptacle Outlet |
| Terminal Screws | Steel 8-32 |
| Operating Temperature | -40°C to 60°C |
| Amperage | 15 A |
| Ground Clips | Brass-Plated |
| Wire | 3 |
| ANSI | C-73 |
| Termination | Side Wire |
| Terminal Accom. | 14-10 AWG |
| Grounding Screw | Steel 8-32 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Line Contacts | Brass Double Wipe .031 Thick |
| Screw Terminal Torque | 14-18 in-lbs |
| Flammability | Rated V-2 per UL94 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Feature 4 | Indented Face |
| UL498 | File E13399 |
| Current Limiting | Full Rated Current |
| Strap Material | Steel |
| NEMA | WD-6, WD-1 |
| Package Quantity | 1 |
