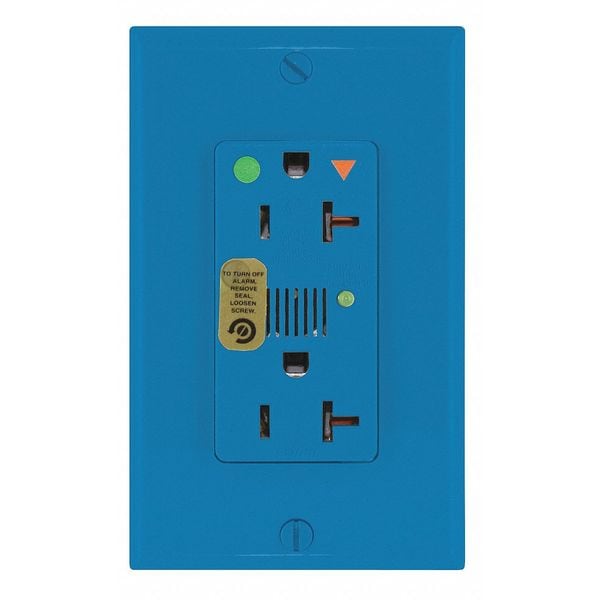

Receptacle, Deco, 20A, 5-20R, 125V, Blue
| Item | Straight Blade Receptacle |
|---|---|
| Application Environment | Hospital Grade |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | Yes |
| NEMA Configuration | 5-20R |
| Material | Nylon |
| Amps | 20 |
| Weather Resistant | No |
| Voltage | 125VAC |
| Outlet Type | Decorator |
| Sub-Category | Duplex Receptacles |
| Special Features | Audible Alarm, Isolated Ground |
| Color | Blue |
| Wiring Method | Back, Side |
| Number of Gangs | 1 |
| Mounting Type | Flush |
| Standards | ANSI C73, CSA Certified C22.2 Certified Type 3, UL 1449 3rd Edition Listed, UL 498, UL 498HG File E13399 |
| Corrosion Resistant | No |
| HP | 1.0 |
| Phase | Single |
| IP Rating | Not Applicable |
| Type | Grounding, Duplex |
| Grade | Hospital Grade |
| Current Rating | 20 A |
| Features | Audible Alarm, Isolated Ground |
| NEMA Receptacle Configuration | 5-20R |
| Surge Protection | Yes |
| Housing Color | Blue |
| Horsepower Rating | 1 HP |
| Voltage Rating | 125V AC |
| Maximum Wire Size | 10 AWG |
| Market | Commercial, Industrial, Residential |
| Minimum Operating Temperature | -40 deg F |
| Overall Depth | 1.6 in |
| Face Plate Width | 1.8 in |
| Maximum Operating Temperature | 140 deg F |
| Receptacle Type | Duplex |
| UL 94 Flammability Rating | V-2 |
| Number of Outlets | 2 |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Not Applicable |
| Grounding | Grounded, Isolated Ground |
| Maximum Surge Current | 27 kA |
| Housing Material | Nylon |
| Includes Mounting Hardware | Yes |
| Face Plate Height | 2.7 in |
| Visual Indicator Lights | Power Connected |
| Includes | Mounting Hardware |
| Connection Orientation | Straight |
| Mount Hole Center-to-Center Height | 3.8 in |
| Contact Material | Brass |
| Minimum Wire Size | 14 AWG |
| For Location | Outdoor |
| NEMA Enclosure Rating | Not Rated |
| Reset Type | Not Applicable |
| Cover Type | No Cover |
| Hub Type | Feed Through |
| Flange Shape | Not Applicable |
| Polarized | Yes |
| AFCI | No |
| Shrouded | Yes |
| Mount Type | Surface |
| Flange Type | Non-Flanged |
| GFCI | No |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
