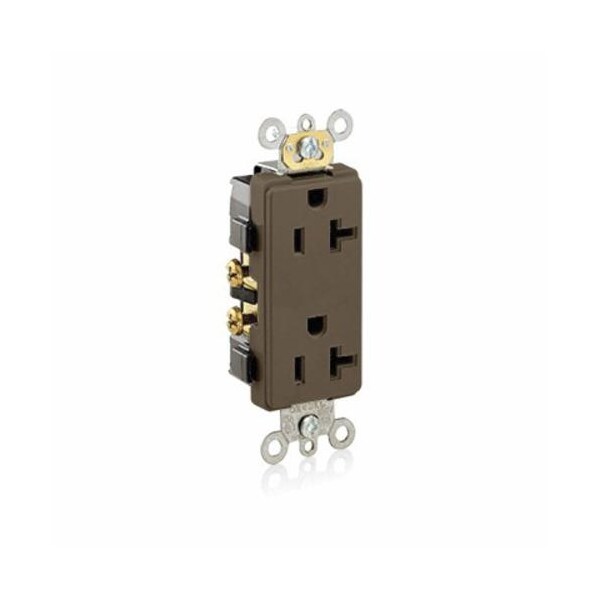

Receptacle, Deco, 20A, 5-20R, 125V, Brown
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | UL Listed 498 File E13399, CSA C22.2 No. 42 File LR-406, ANSI C-73, NEMA WD-6, NOM 057 |
| Material | Thermoplastic Nylon |
| Type | Straight Blade;Duplex Outlet |
| Sub-Category | Duplex Receptacles |
| Color | Brown |
| Weather Resistant | No |
| Number of Gangs | 1 |
| Item - Plugs and Receptacles | Receptacle |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Phase | 1 |
| Outlet Type | Decorator |
| NEMA Configuration | 5-20R |
| Mounting Type | Flush |
| Height | 8-1/2 in |
| Amps | 20 |
| HP | 1.0 |
| Wiring Method | Back, Side |
| ANSI | C-73 |
| Screw Terminal Torque | 14 to 18 in-lb |
| Grade | Commercial Specification Grade |
| Current Limiting | Full Rated Current |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Clamp Nuts | Zinc Plated Steel |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Grounding | Self-Grounding |
| Grounding Screw | Brass 8-32 |
| NEMA | WD-6, WD-1 |
| Termination | Back, Side Wire |
| CSA C22.2 No. 42 | File LR-406 |
| UL498 | File E13399 |
| Terminal Screws | Brass 10-32 |
| Ground Clips | Brass-Plated |
| Body Material | Thermoplastic Nylon |
| Device Type | Duplex Receptacle Outlet |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
| Face Material | Thermoplastic Nylon |
| Amperage | 20 A |
| At Rated Voltage | 1 HP |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal Accom. | 14-10 AWG |
| Feature 4 | Smooth Face |
| Environmental Conditions | Flammability |
| Dimensions | 4.06 in x 1.31 in x 1.14 in |
| Mounting | Wall Box |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) |
| Terminal Type | Back/Side Wired |
| Connection | Back and Side Wired |
| Temperature Rating | -40 to +60 °C |
| Application | Commercial |
| Length | 12-3/4 in |
| Dielectric Strength | 2000 (Min.) V |
| Voltage Rating | 125 V |
| Enclosure | WD-6, NEMA WD-1 |
| Package Quantity | 1 |
