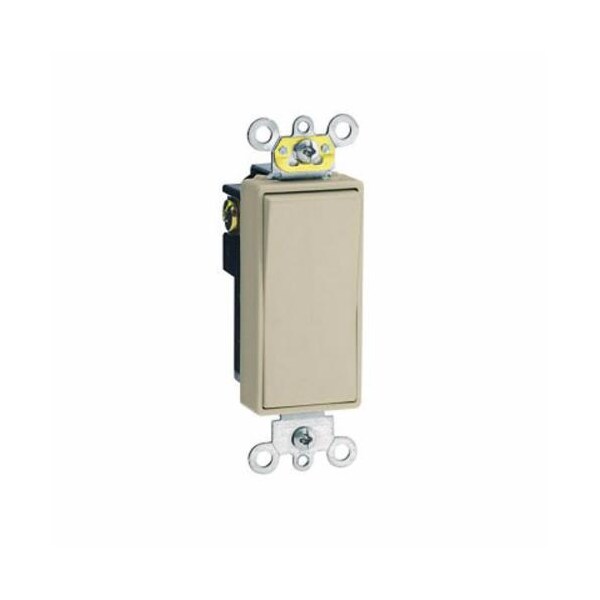

Rocker Switch 20A 120 277V Dec 4Way Sw Ivory
| Color | Ivory |
|---|---|
| Height | 4.19 in |
| Length | 1.69 in |
| Width | 1.62 in |
| Connection | Back Wired;Side Wired |
| Number of Poles | 2 |
| Type | Switch |
| Contact Rating | 120/277 VAC;20 AMP |
| Operating Temperature | -40 to +120 °C |
| Mounting | Box |
| Operating Cycles | 50000 Cycles |
| Actuator | Rocker |
| Standard | UL Listed (E-7458);CSA Certified (LR 3413);NOM Certified (057);Federal Specification (WS-896) |
| Application | Commercial |
| Environmental Conditions | Flammability (Rated UL 94 V-2) |
| Power Rating | 1 HP, 2 HP |
| Amperage Rating | 20 A |
| Dimensions | 46 in x 1.76 in x 1.6 in |
| Action | Momentary, Maintained |
| Material | Thermoplastic |
| Terminal Type | Back/Side Wired |
| Voltage Rating | 120/277 VAC |
| Package Quantity | 1 |
