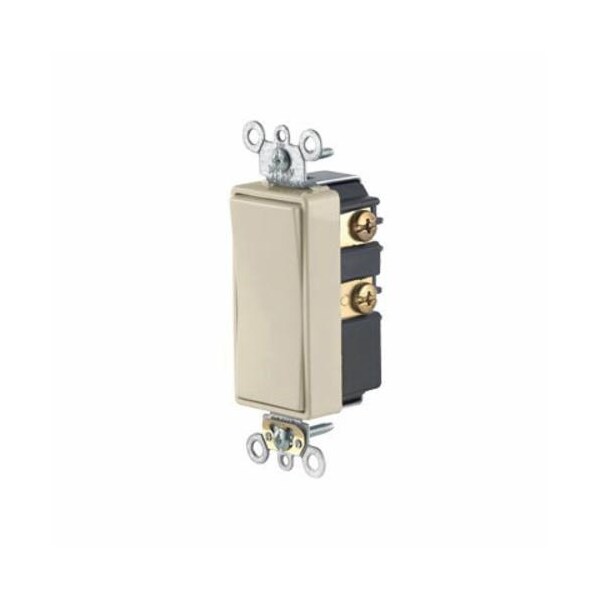

Rocker Switch 3A 24V Dec Spdt Mom Sw Iv
| Color | Ivory |
|---|---|
| Connection | Back Wired;Side Wired |
| Length | 1.69 in |
| Width | 1.62 in |
| Height | 4.19 in |
| Voltage | 44 VAC/VDC |
| Grade | Commercial Specification Grade |
| Number of Poles | 1 |
| Function | Double-Throw |
| Frame Material | Polycarbonate |
| Device Type | Switch |
| Operating Temperature | -40°C to 65°C |
| Flammability | UL94V-2 |
| Grounding | Self-Grounding |
| Feature | Momentary Contact CTR OFF |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Actuator Material | Polycarbonate |
| Terminal Screws | Brass |
| Base Material | Polyester |
| Screw Terminal Torque | 14-18 in-lbs |
| Amperage | 3 A |
| Contacts | Silver-Alloy |
| Termination | Back, Side Wire |
| Voltage Rating | 24 VAC//VDC |
| Application | Commercial |
| Environmental Conditions | Flammability (Rated UL 94 V-2) |
| Dimensions | 4.06 in x 1.3 in x 1.61 in |
| Action | SPDT |
| Mounting | Box |
| Contact Configuration | SPDT |
| Contact Rating | 24 VAC/VDC;3 AMP |
| Terminal Type | Back/Side Wired |
| Amperage Rating | 3 A |
| Actuator | Rocker |
| Package Quantity | 1 |
