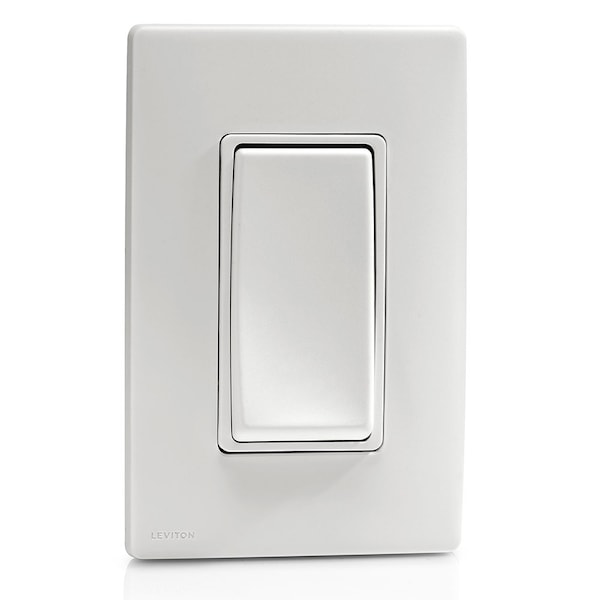

Interruptor basculante Renu 3 vías blanco sobre blanco
| Item | Switch |
|---|---|
| HP | 1/2HP @ 120V; 2HP@ 240V-277V |
| Standards | cULus Listed |
| Connection | Back Wired;Side Wired;Quickwired |
| Length | 4.1 in |
| Height | 1.89 in |
| Width | 6-3/4 in |
| Color | White |
| Application | Residential Applications |
| Material | Thermoplastic, Polycarbonate /Steel |
| Contact Rating | 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Amperage Rating | 15 A |
| Dimensions | 4.57 in H x 1.78 in W x 0.8 in D |
| Actuator | Rocker |
| Contact Configuration | ON/OFF |
| Operating Cycles | 10000 |
| Mounting | Surface |
| Type | 3-Way Dimmer |
| Terminal Type | Back, Quick-Wired, Side |
| Voltage Rating | 120/277 VAC |
| Number of Poles | 1 |
| Package Quantity | 1 |
