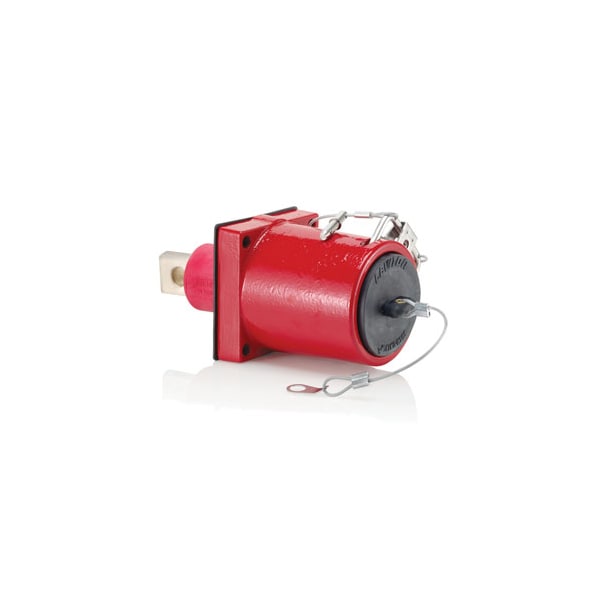

Single Hole Busbar, 1135A, 1000V AC, 1 Phase
| Item | Single Hole Busbar |
|---|---|
| Amps | 1135A |
| Voltage | 1000V AC |
| Number of Poles | 1 |
| Phase/Wire | 1 Phase |
| Enclosure Rating | NEMA 3R |
| Height | 4.31 in |
| Width | 8 in |
| Depth | 7-1/2 in |
| Type | 45 deg Male |
| Application | Sports, Entertainment and Movie Industry, Welding and Construction Sites, Theme Parks and Carni |
| Color | Red |
| Finish | Powder Coated |
| Receptacle Housing | Powder-Coated Cast Aluminum |
| Padlock Bracket | Stainless Steel |
| Clevis Pin | Stainless Steel |
| Housing Gasket | Rubber |
| Dust Cap | Santoprene TPV |
| Bus Bar Insulator | Santoprene TPV |
| Bus Bar Contact | Silver-Plated High Conductivity Alloy |
| Gender | Male |
| Mounting Type | Panel |
| Wire Size | 313 to 777 |
| Dimensions | 3.91 in Dia x 4.98 in L |
| Housing Material | Cast Aluminum |
| Contact Material | Alloy |
| Series | 49 Series |
| Temperature Rating | -60 to 135 |
| Package Quantity | 1 |
