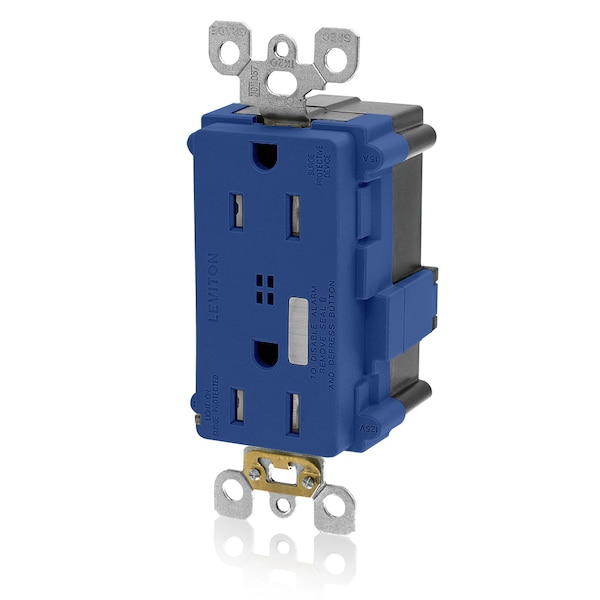

Surge Suppressor, 125V, 2 Poles, 3 Wires
| Item | Surge Suppressor |
|---|---|
| Voltage | 125 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-N, N-G), 700V (L-G) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current per Mode | 9kA (L-G, N-G), 18kA (L-N) |
| Short Circuit Current Rating | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Enclosure Material | Polycarbonate |
| Length | 2-1/4 in |
| Depth | 4-1/4 in |
| Width | 2 in |
| Type | Tamper-Resistant Surge Protective Duplex Receptacle |
| Application | Commercial Applications |
| Standard | UL/CSA |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
