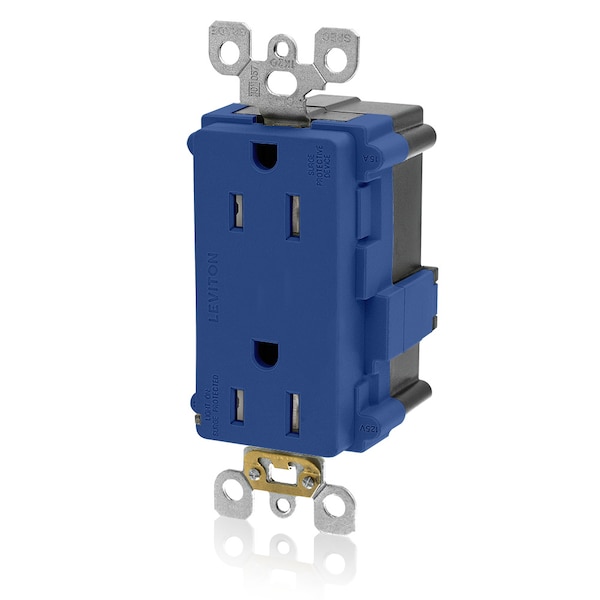

Surge Suppressor, 125V, 2 Poles, 3 Wires + Self-Ground
| Item | Surge Suppressor |
|---|---|
| Voltage | 125 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-N, N-G), 700V (L-G) |
| Number of Wires | 3 Wires + Self-Ground |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current per Mode | 9kA (L-G, N-G), 18kA (L-N) |
| Short Circuit Current Rating | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Enclosure Material | Polycarbonate |
| Length | 2-1/4 in |
| Depth | 4-1/4 in |
| Width | 2 in |
| Type | 2-Pole 3-Wire Non-Alarmed Self-Grounding Tamper Resistant |
| Application | Commercial |
| Color | Blue |
| Device Type | Duplex Receptacle Outlet |
| SCCR | 5,000 A |
| NEMA | WD-6, WD-1 |
| Function | Surge Protective |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Tamper Resistant Shutter Mechanism | Derlin® Acetal |
| Face Material | Nylon |
| Operating Temperature | -10°C to 60°C |
| ANSI | C-73 |
| Joules Rating | 720 |
| Frequency | 50/60Hz |
| Line Contacts | Brass Triple-Wipe |
| Grade | Commercial Specification Grade |
| Locking Pins | Solid Brass |
| Termination | Modular |
| Diagnostics | Indicator Light |
| Flammability | Rated V-0 per UL 94 |
| Strap Material | Zinc-Plated Steel |
| Amperage | 15 A |
| Feature | Tamper-Resistant |
| Lead Identification | Leads identified in accordance with UL 498 |
| Ground Clips | Brass-Plated Steel |
| Outlet | Duplex |
| Standard | UL/CSA |
| Type Of Indicators | Light, Audible Alarm |
| Package Quantity | 1 |
