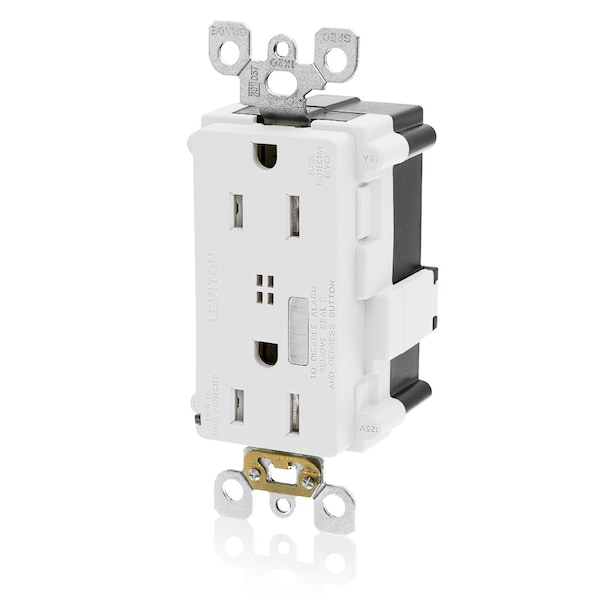

Surge Suppressor, 125V, 2 Poles, 3 Wires + Self-Ground
| Item | Surge Suppressor |
|---|---|
| Voltage | 125 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-N, N-G), 700V (L-G) |
| Number of Wires | 3 Wires + Self-Ground |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current per Mode | 9kA (L-G, N-G), 18kA (L-N) |
| Short Circuit Current Rating | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Enclosure Material | Polycarbonate |
| Length | 2-1/4 in |
| Depth | 4-1/4 in |
| Width | 2 in |
| Type | Tamper-Resistant Surge Protective Duplex Receptacle |
| Color | White |
| Application | Commercial Applications |
| NEMA | WD-6, WD-1 |
| Feature | Tamper-Resistant |
| Face Material | Nylon |
| Grade | Commercial Specification Grade |
| Device Type | Duplex Receptacle Outlet |
| Operating Temperature | -10°C to 60°C |
| Function | Surge Protective |
| ANSI | C-73 |
| Strap Material | Zinc-Plated Steel |
| Diagnostics | Indicator Light & Audible Alarm |
| SCCR | 5,000 A |
| Termination | Modular |
| Amperage | 15 A |
| Line Contacts | Brass Triple-Wipe |
| Ground Clips | Brass-Plated Steel |
| Lead Identification | Leads identified in accordance with UL 498 |
| Frequency | 50/60Hz |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Flammability | Rated V-0 per UL 94 |
| Joules Rating | 720 |
| Tamper Resistant Shutter Mechanism | Derlin® Acetal |
| Locking Pins | Solid Brass |
| Standard | UL/CSA |
| Package Quantity | 1 |
