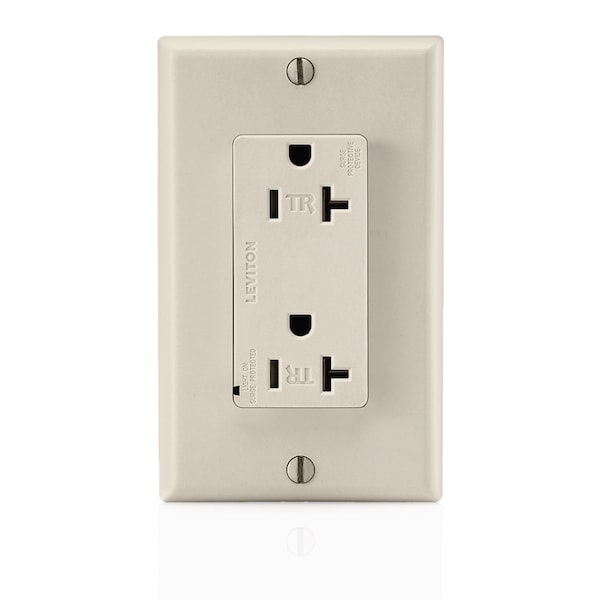

Surge Suppressor, 125V, 2 Poles, 3 Wires
| Item | Surge Suppressor |
|---|---|
| Voltage | 125 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-N, N-G), 700V (L-G) |
| Number of Wires | 3 Wires |
| Nominal Discharge Current | 3 kA |
| Max. Continuing Operating Voltage | 150V |
| Length | 5 in |
| Depth | 2.38 in |
| Width | 2.81 in |
| Mounting | Wall |
| Type | Receptacle |
| Application | Commercial and Residential Applications |
| Screw Terminal Torque | 14-18 in-lbs |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
