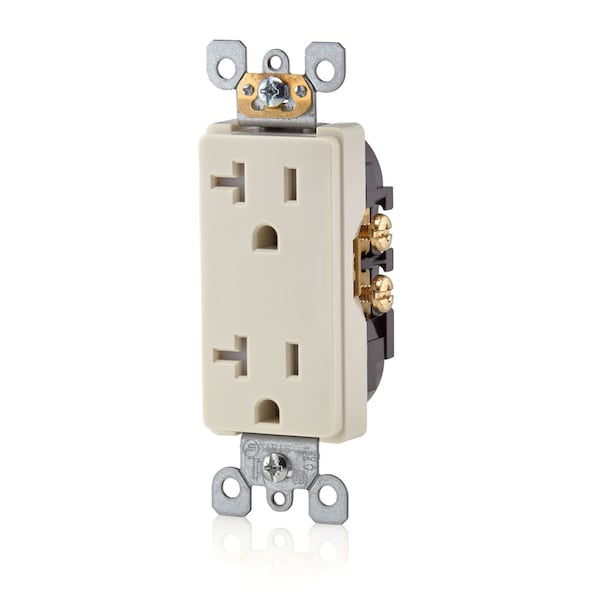

Tamper Resistant Duplex Recept 20A 125V
| Color | Light Almond |
|---|---|
| Type | Duplex Receptacle |
| Width | 1.44 in |
| Voltage | 125 VAC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Height | 4-1/4 in |
| Application | Commercial |
| Length | 1.88 in |
| Feature | Tamper-Resistant |
| Amperage | 20 A |
| Product Type | Decora |
| Ratings | 20A-125V |
| NEMA | 5-20R |
| Torque Range | 14 - 18 in.-lbs |
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
| UL 498 | File E13399 |
| Mounting | Wallplate |
| Connection | Quickwire Push-In and Side Wired |
| Dimensions | 4.2 in H x 1.351 in W x 1.184 in D |
| Temperature Rating | -40 to +60 °C |
| Grade | Residential |
| Voltage Rating | 125 V |
| Environmental Conditions | Flammability |
| Wire Size | 14 AWG |
| Standard | NOM;CSA Certified (File 152105);UL (Listed) |
| Package Quantity | 1 |
