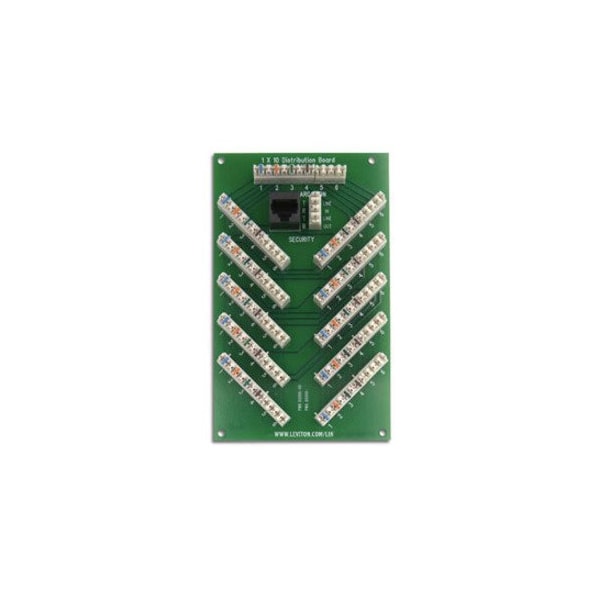

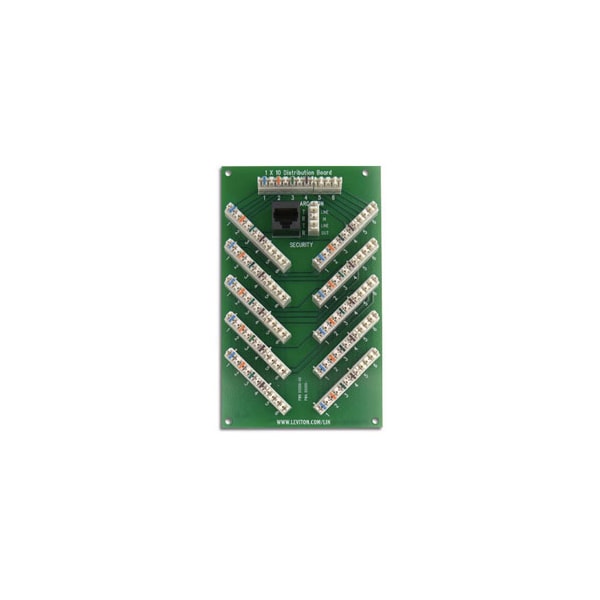

TELE DISTRIBUTING TERMINAL 1X10 6-LINE TEL SECURITY EXPANSION BOARD
| Item | Expansion Board |
|---|---|
| Dimension | 5-3/4 in. H x 3-1/2 in. W x 0.63 in. L |
| Height | 5-3/4 in |
| Width | 3-1/2 in |
| Type | Board |
| Application | Residential Applications |
| Length | 0.63 in |
| Depth | 0.63 in |
| Standards and Certifications | UL |
| Description | 1X10 6-Line Bridged Telephone and Security |
| Telephone Bridge | Eleven Bridged 6-Pair 110-IDC, 1 RJ45 |
| 1X10 6-Line Brdg Tele and Security | 1 |
| UL Listed | Recognized Component |
| Product Name | 1 x 10 (6-Line) Bridged Telephone Expansion Board |
| Product Type | Phone Patch Panel |
| Product Material | Plastic |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | ANSI/TIA-570-B, ANSI/TIA-1096-A (formerly FCC Part 68), UL |
| Total Number of Ports | 13 |
| Standard | UL Listed:Recognized Component, Two Years Limited Warranty |
| Dimensions | 0.685 in x 3-1/2 in x 5-3/4 in |
| Connection Type | RJ-45 |
| Mounting Type | Panel |
| Number of Slots | 10 |
| Package Quantity | 1 |
