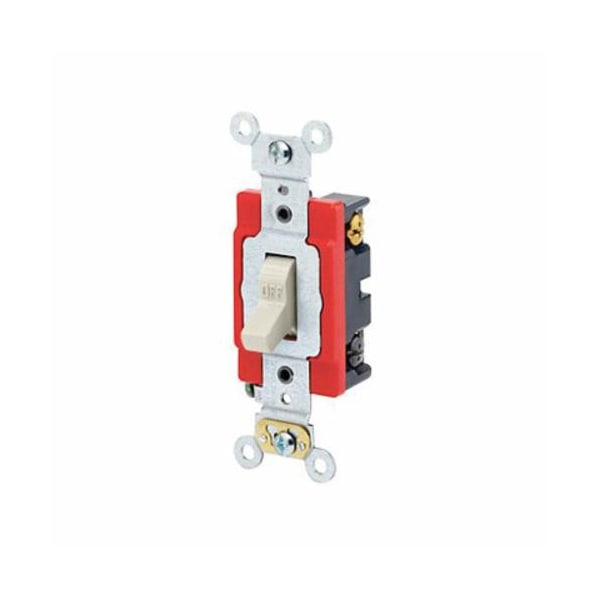

Interruptor basculante de 20 amperios, 120-277 voltios, de 4 vías, con luz y color almendra.
| Connection | Wired |
|---|---|
| Voltage | 120/277 VAC |
| Width | 1.62 in |
| Mounting | Box |
| Color | Light Almond |
| Height | 4.19 in |
| Body Material | Thermoplastic |
| Function | 4-Way |
| Amperage | 20 A |
| Max. Amperage | 16 A |
| Strap Material | Steel |
| Termination | Side Wire, Back |
| Grounding | Self-Grounding |
| Standards and Certifications | CSA, UL |
| Actuator Material | Thermoplastic |
| Device Type | Toggle Switch |
| Screw Terminal Torque | 14-18 in-lbs |
| HP Rating | 1HP-120V 2HP-240V-277V |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| Size | 46 H x 1.31 W x 13 D in |
| Application | Commercial |
| Length | 1.69 in |
| Operating Temperature | -40 to +65 °C |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Actuator | Toggle |
| Number of Poles | 2 |
| Package Quantity | 1 |
