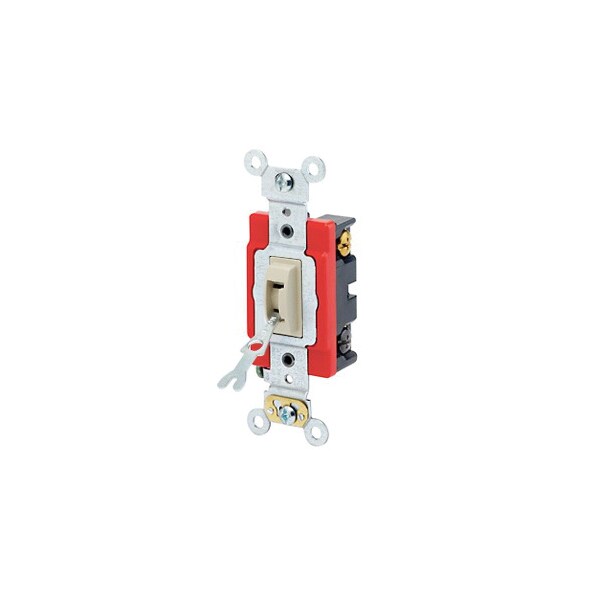

Interruptor basculante 20A 120 277V Lckg 4 vías Sw Iv
| Mounting | Box |
|---|---|
| Connection | Wired |
| Color | Ivory |
| Height | 4.19 in |
| Width | 1.62 in |
| Voltage | 120/277 VAC |
| Operating Temperature | -40°C to 65°C |
| Endurance | 50,000 cycles minimum |
| Function | 4-Way |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Contact Material | Silver Alloy |
| UL Fed Spec WS896E | File #E7458 |
| CSA C22.2 No. 111 | File #152105 |
| NEMA | WD-1 & WD-6 |
| Amperage | 20 A |
| Base Material | Thermoplastic |
| Ground Clips | Brass |
| Termination | Side Wire, Back |
| Grounding | Self-Grounding |
| ANSI | C-73 |
| Cover Material | Thermoplastic |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Terminal Screws | Brass 8-32 |
| Grounding Screw | Brass 8-32 |
| Toggle | Polycarbonate |
| Max. Amperage | 16 A |
| UL Standard | UL 20 |
| Strap Material | .048" Thick Galvanized Steel |
| Temperature Rise | Maximum 30 degress C rise |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Device Type | Tamper-Resistant Toggle Switch |
| Screw Terminal Torque | 14-18 in-lbs |
| Flammability | Rated V-2 per UL 94 |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| HP Rating | 1HP-120V 2HP-240V |
| Application | Commercial |
| Type | Toggle Switch |
| Power Rating | 0.5 HP |
| Terminal Type | Back/Side Wired Screw |
| Actuator | Key |
| Number of Poles | 2 |
| Operating Cycles | 50000 Cycles |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Dimensions | 46 in H x 1.31 in W x 13 in D |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| Length | 1.69 in |
| Package Quantity | 1 |
