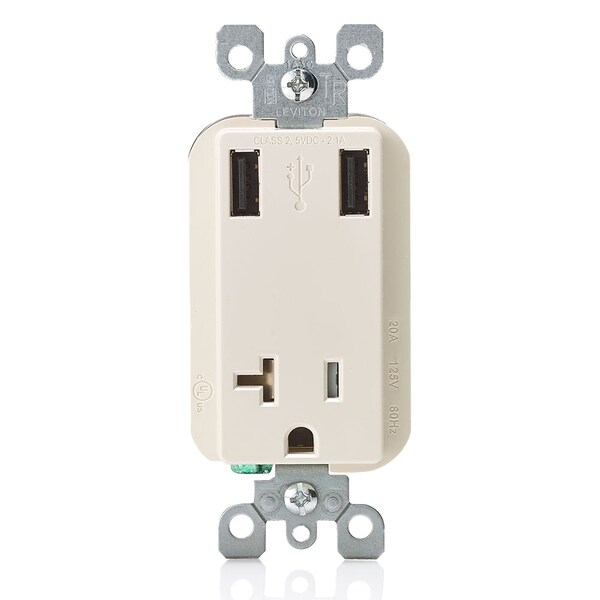

El Leviton USB Charge Rec es un dispositivo de carga con una capacidad de 20A y 125V. Proporciona una corriente de 2.1A a 5Vdc, ideal para cargar dispositivos USB. El color almendra le da un aspecto estético agradable para combinar con su decoración.
| Item | Single Charger Receptacle |
|---|---|
| Type | Receptacle |
| NEMA Configuration | 5-20R |
| Amps | 20 |
| Voltage | 125VAC |
| Height | 4-1/4 in |
| Width | 1.69 in |
| Color | Light Almond |
| Number of Poles | 2 |
| Wiring Method | Side, Back |
| Length | 2-1/4 in |
| Standards | UL |
| USB Connector | Type A |
| Number of Wires | 3 |
| Number of USB Ports | 2 |
| Phase | 1 |
| HP | 1 |
| Material of Construction | Thermoplastic |
| USB Charging Capacity | 2.1A @ 5VDC |
| Tamper Resistance | Yes |
| Application | Commercial, Hotel, Airport Cafes, Restaurant, Office Cubicles, College Dorm Rooms, Residential, |
| Body Material | Thermoplastic |
| Standards and Certifications | cULus |
| Cover Material | Thermoplastic |
| Strap Material | Steel |
| NEMA | 5-20R |
| Ratings | 20A-125V |
| Horsepower Rating | 20A-1/2 HP; 20A-1 HP |
| Amperage | 20 A |
| Flammability | Rated V-2 per UL 94 |
| Terminal Accom. | 14-12 AWG |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Product Type | Outlet/USB Combo |
| Termination | Side, Back |
| Torque Range | 12-14 inch pounds |
| Grounding | Grounded |
| Operating Temperature | -10°C to 60°C |
| Voltage Rating | 125 V |
| Standard | NEC;UL Listed (498) |
| Mounting | Wallplate |
| Connection | Wired |
| Contact Rating | 125 V;2.1 AMP (USB);20 AMP (Receptacle) |
| Amperage Rating | 2.1 A |
| Package Quantity | 1 |
