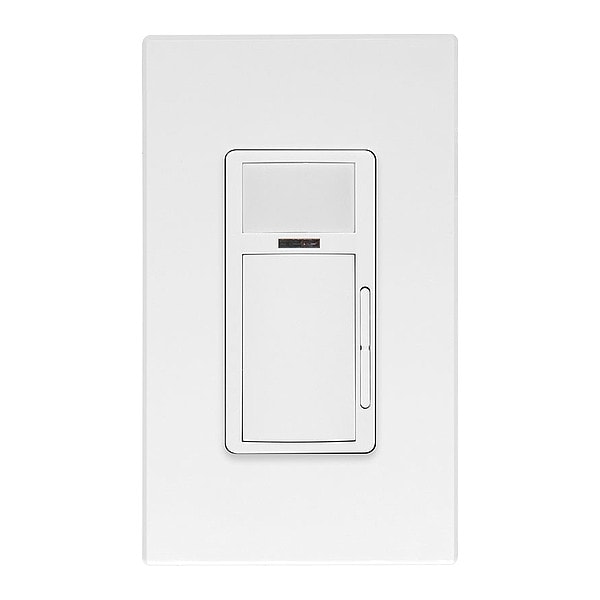

Aspiradora Dmr, sensor de movimiento, 120-277V CA, blanco
| Item - Motion Sensing and Dimming | Occupancy Sensor; Vacancy Sensor |
|---|---|
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared (PIR) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 1,100 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Color - Motion Sensing and Dimming | White |
| Coverage Angle - Motion Sensor | 180 deg |
| Use With - Motion Sensing and Dimming | 0 to 10V Dimming Ballast |
| Lighting Technology | Incandescent |
| Max. Capacity @ 120VAC | 10A (General Purpose, LED/Electronic Ballast, Tungsten), 5A (Standard Ballast), 6.67A (1/4 HP Motor) |
| Description/Special Features | Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device, Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts, Fits in a standard wallbox and gangable with other units, ODD24-IDW is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source, Out-of-the-box configuration default mode, Set a security code to lock configuration settings |
| Max. Capacity @ 277VAC | 10A (General Purpose, Standard Ballast), 5A (LED/Electronic Ballast), 6.67A (Tungsten), FLA 3.0A (1/3HP Motor) |
| Standards | ASHRAE 90.1, cUL Listed, FCC Approved, ICC, IECC, Title 24, Part 6, UL Listed |
| Item | Vacancy Dimmer |
| Color | White |
| Dimming Type | Full Continuous Dimming |
| Minimum Coverage Area | 400 sq ft |
| Fan Rated | Yes |
| Sensor Operation | 0 to 10V Dimming, Occupancy, Photocell, Vacancy |
| Overall Height | 4.13 in |
| Includes Motion Sensor | Yes |
| Coverage Type | Small Motion |
| Overall Depth | 1.86 in |
| Load Rating @ 480V AC | Not Applicable |
| Nightlight | Yes |
| Manufacturer Warranty | 5 yr |
| Neutral Required | Yes |
| Number of Buttons | 2 |
| Coverage Angle | 180 Degrees |
| Maximum Operating Temperature | 104 deg F |
| Minimum Operating Temperature | 32 Degrees F |
| Overall Width | 2.12 in |
| Maximum Coverage Area | 1,100 sq ft |
| Dimming Method | 0-10V |
| Maximum Detection Distance | 40 ft |
| Installation Location | Wall |
| Communication Method | Hard Wired |
| Load Rating @ 120V AC | 10A (General Purpose, Standard Ballast), 5.8A FLA (1/4 HP Motor), 6.67A (Tungsten), 8A (LED/Electronic Ballast) |
| Rated Frequency | 50/60 Hz |
| Includes Dimming Switch | Dimming Switch Included |
| Load Rating @ 277V AC | 10A (General Purpose, Standard Ballast), 3A FLA (1/3HP Motor), 5A (LED/Electronic Ballast), 6.67A (Tungsten) |
| Compatible with Series | 0-10V Dimming Ballast |
| Series | Smart / Decora |
| Includes Wall Plate | Wall Plate Not Included |
| Testing and Code Compliance | Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements |
| Storage Temperature Range | -40° to 185°F |
| IP Rating | IP10 |
| Coverage (Sq.Ft.) | 1,100 |
| Pattern | 180° |
| Load Rating | General Purpose @ 120V: 10A - General Purpose @ 277V: 10A - LED/Electronic Ballast @ 120V: 8A, - LED/Electronic Ballast @ 277V: 5A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A) |
| Sensor Type | Vacancy, Occupancy |
| Mounting | Wall Switch |
| Listings | IECC, UL and cUL listed, FCC, ICC |
| Application | Offices, Lobbies, Small Meeting Rooms |
| Feature | App configurable |
| Frequency | 50/60Hz |
| Size | Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm) |
| Voltage | 120-277 VAC |
| Input Current | 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current |
| Sensor Technology | Passive Infrared |
| Neutral Wire Connection | Required |
| Grade | Commercial |
| Product Type | Smart Sensor |
| Switch Type | Single-Pole |
| Operating Temperature | 0°C to 40°C |
| Package Quantity | 1 |
