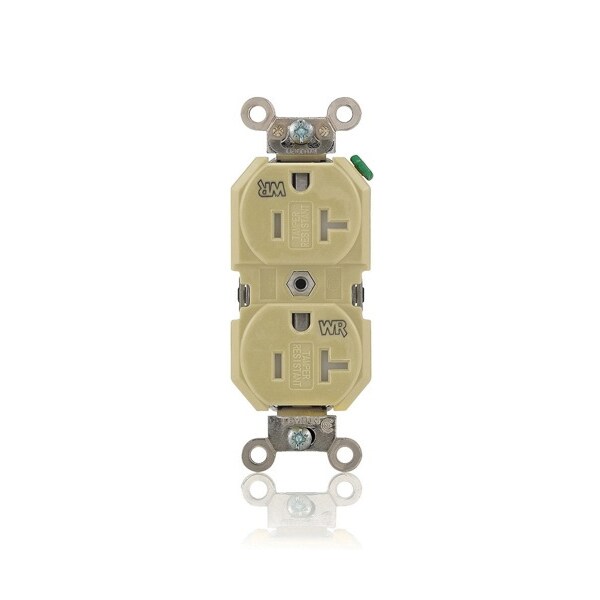

WALL FIXTURE 5-20R RECEP WR TR IVORY
| Number of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Type | Weather Resistant Receptacle |
| Color | Ivory |
| Height | 8-1/2 in |
| Grounding Screw | Brass |
| Grade | Heavy-Duty Industrial Specification Grade |
| Grounding | Self-Grounding |
| Mounting Screws | Stainless Steel |
| CSA C22.2 No. 42 | File 152105 |
| Device Type | Duplex Receptacle Outlet |
| NEMA | WD-1 WD-6 |
| Terminal Screws | Brass |
| Clamp Nuts | Zinc Plated Steel |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| At Rated Voltage | 1 HP |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Current Limiting | Full Rated Current |
| Termination | Back, Side Wire |
| Feature | Weather and Tamper-Resistant|Smooth Face |
| Screw Terminal Torque | 14 to 18 in-lb |
| Body Material | Nylon |
| UL 498 | File E13399 |
| Terminal Accom. | 14-10 AWG |
| ANSI | C-73 |
| Ground Clips | Nickel-Plated Brass |
| Face Material | Nylon |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Strap Material | Nickel Plated Brass |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .040 Thick |
| Shutter Mechanism | Delrin® Acetal |
| Length | 12-3/4 in |
| Voltage Rating | 125 V |
| NEMA Rating | NEMA 5-20R |
| Terminal Type | Back/Side Wired |
| Amperage Rating | 20 A |
| Application | Commerical |
| Temperature Rating | -40 to 75 °C |
| Package Quantity | 1 |
